High Speed Metal Stud Forming Machine Suspended Ceiling Framing Main T Grid Roll Forming Machine

High Speed Metal Stud Forming Machine Suspended Ceiling Framing Main T Grid Roll Forming Machine
High Speed Metal Stud Forming Machine Suspended Ceiling Framing Main T Grid Roll Forming Machine High Speed Metal Stud Forming Machine Suspended Ceiling Framing Main T Grid Roll Forming Machine High Speed Metal Stud Forming Machine Suspended Ceiling Framing Main T Grid Roll Forming Machine High Speed Metal Stud Forming Machine Suspended Ceiling Framing Main T Grid Roll Forming Machine

Large Image :  High Speed Metal Stud Forming Machine Suspended Ceiling Framing Main T Grid Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY24x38
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

High Speed Metal Stud Forming Machine Suspended Ceiling Framing Main T Grid Roll Forming Machine

Description
Product Name: Suspended Ceiling Framing Main T Grid Roll Forming Machine Color: Blue Or According To Your Requirement
Control System: PLC Cutting Type: Non-stop Cutting
Warranty: 2 Years Lifetime: 10years
High Light:

profile roll forming machine

,

metal stud roll former

Suspended Ceiling Framing Main T Grid Roll Forming Machine

The T-bar is a technical profile for supporting suspended ceiling panels (T-grid suspended ceiling), usually sized 60x60cm and 60x120cm. This highly technical system consists of three different profiles with length 600, 1200 (cross tees) and 3600mm (main runner) although many other sizes exist on the market like the Imperial system.



Specifications:



No. Item
1. Processing Material GI
2. Processing Thickness(mm) 0.2—0.6mm
3. Material of Rollers Cr12
4. Diameter of Shaft 40mm
5. Production Speed 0-25m/min
6. 0-25m/min Gear Transmission
7. Cutting Model Hydraulic Profile Cutting
8. Length Measurement Encoder
9. Control Style PLC
10. Operation Model Button + Touch Screen
11. Total Power 8kw
12. Voltage 380V 50HZ or at buyer's request
13. Testing Material Q195

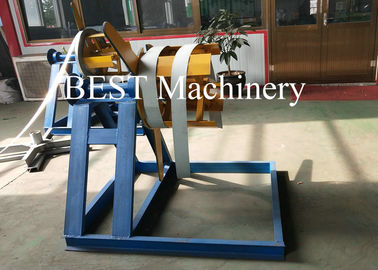

1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs

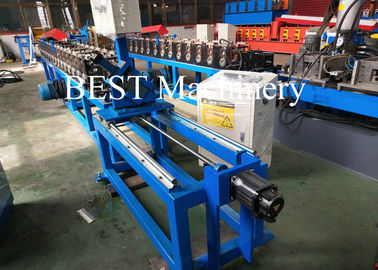

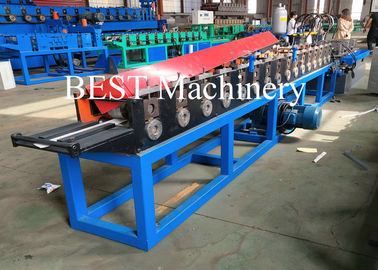

2.ROLL FORMING MACHINE
(1)Rolled Material: Cold Rolled Steel Sheet
(2)Material Thickness: 0.2-0.4mm
(3)Rollers: 16 Groups
(4)Material for Rollers: Cr12 steel

(5)Material for shaft: 45# steel(quenching and Harding and chroming)

(6) Hardness for Heat Treatment: HRC55 – 60

(7)Diameter of shaft: 40mm

(8)Frame panel thickness: 20mm

(9)Bottom frame: 36# H-section steel
(10)Motor Power: 5.5kw

(11)Driven type: Chain

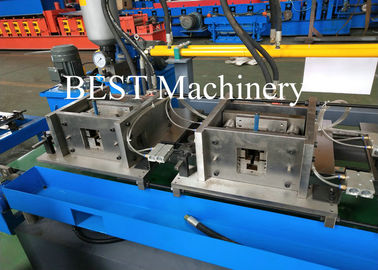

5.CUT-OFF And PUNCHING DEVICE
(1)Material for Cut-Off Modular:Cr12 steel
(2)Hardness for Heat Treatment:HRC55 – 60
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off

(5)Material for punching die: Cr12steel

(4)Power: 5.5kw





4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen

(2)Length Error: ±1mm

(3)Language: English and Chinese

(4)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



Cangzhou BEST Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of all kinds of roll forming machine. We are located in Cangzhou, China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.




RFQ

Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.
