Product Details:
|
| Product Name: | Customized Suspended Ceiling Tee Grid Roll Forming Machine | Color: | Blue Or According To Your Requirement |
|---|---|---|---|
| Control System: | PLC | Cutting Type: | Non-stop Cutting |
| Warranty: | 2 Years | Lifetime: | 10years |
| High Light: | profile roll forming machine,metal stud roll former |
||
The T-bar is a technical profile for supporting suspended ceiling panels (T-grid suspended ceiling), usually sized 60x60cm and 60x120cm. This highly technical system consists of three different profiles with length 600, 1200 (cross tees) and 3600mm (main runner) although many other sizes exist on the market like the Imperial system.
Component
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
Specifications:
1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs

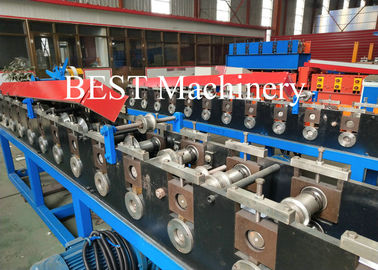

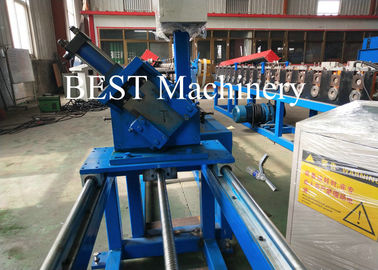

2. ROLL FORMING MACHINE
(1) Rolled Material: Cold Rolled Steel Sheet
(2) Material Thickness: 0.2-0.4mm
(3) Rollers: 16 Groups
(4) Material for Rollers: Cr12 steel
(5) Material for shaft: 45# steel(quenching and Harding and chroming)
(6) Hardness for Heat Treatment: HRC55 – 60
(7) Diameter of shaft: 40mm
(8) Frame panel thickness: 20mm
(9) Bottom frame: 36# H-section steel
(10) Motor Power: 5.5kw
(11) Driven type: Chain

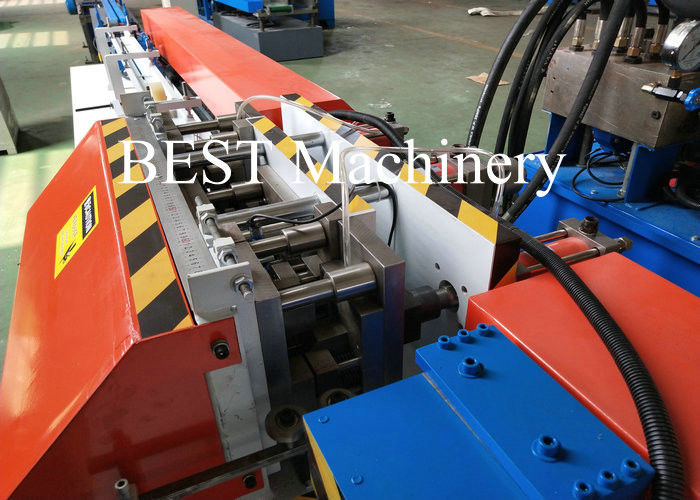

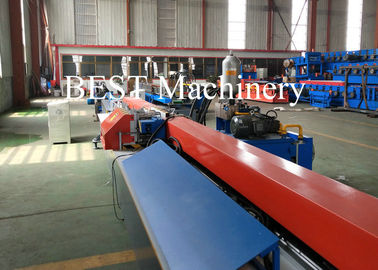

5. CUT-OFF And PUNCHING DEVICE
(1) Material for Cut-Off Modular:Cr12 steel
(2) Hardness for Heat Treatment:HRC55 – 60
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(5) Material for punching die: Cr12steel
(4) Power: 5.5kw
4. PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) Length Error: ±1mm
(3) Language: English and Chinese
(4) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Cangzhou BEST Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of all kinds of roll forming machine. We are located in Cangzhou, China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
| Working conditions | |
| 1.working size | 30m x 2m x 4m |
| 2.Power supply | 8.5kw |
| 3.Frequency | 50-60HZ |
| 4.Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7.Lift device | 3-5t forklift or crane |
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
