Product Details:
|
| Name: | Wall Cadding Trapezoid Metal Forming Panel Roof Making Machine | Machine Color: | As Request |
|---|---|---|---|
| Power: | 6kw | Speed: | 8-12m/min |
| Roller Diameter: | 70mm | Roller Material: | 45#steel |
| Shaft Material: | 45#steel | Cutting: | Hydraulic |
| Blade: | Cr12 | Material: | 0.3-0.8mm |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
Wall Cadding Trapezoid Metal Forming Panel Roof Making Machine
Specifications:
Features:
Detail Information
1.DECOILER
(1)Inner Diameter: Φ508 – Φ610 mm
(2)Out Diameter: 1500 mm
(3)Max. Loading Capacity: 5000 kg
2.ROLL FORMING MACHINE
(1)Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
(2)Material for shaft: high grade No.45 steel after treatment
(4)Diameter of shaft: 70mm
(5)Frame panel thickness: 20mm
(6)Bottom frame: 36# H-section steel
3. ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
4.CUTTING
(1)Cutting after forming: Cut the sheet after roll forming to required length
(2)Uses two hydraulic cylinders for operation.
(3)Material of blade:Cr12, 58-62 HRC hardness
(4)Cutting power by hydraulic,5.5KW
(5)Working pressure: 12Mpa adjustable
(6)Length measuring: Automatic encoder length measuring
(7)Tolerance of length: +/- 1.5mm for each piece end product
Payment:
| Payment type | 30% T/T prepaid and balance should be paid before loading |
| Delivery time | 45 days after receiving downpayment |
| Guarantee period | 18months free service/ pay service all the machine life |
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.

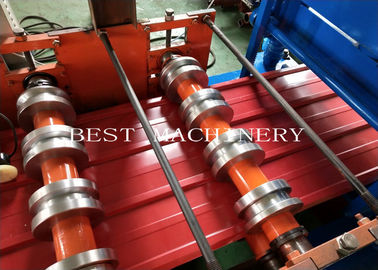

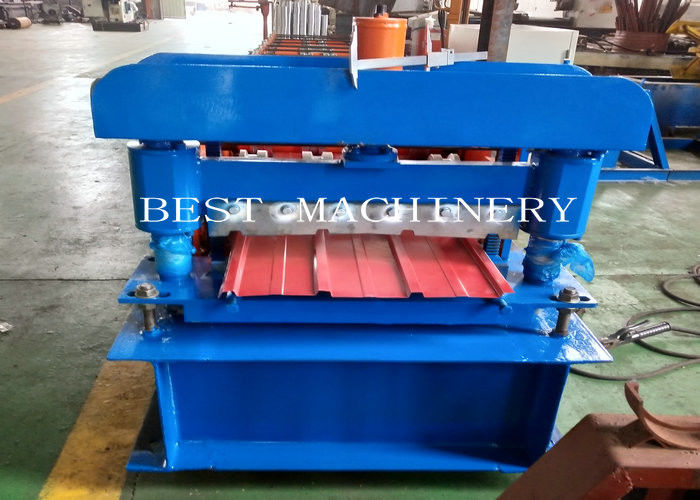

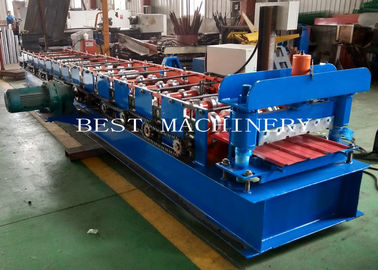

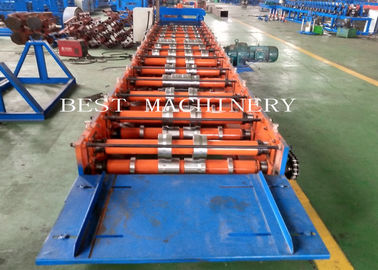

Machine Photo
