Product Details:
|
| Name: | Gear Box Driven Customized Panel Roll Forming Machine 18.5kw Power Formed | Material: | Galvanized |
|---|---|---|---|
| Condition: | New | Warranty: | 2 Years |
| Customized: | Yes | Place Of Origin: | Hebei, China |
| Voltage: | Requirement | Roller Material: | GCr15 |
| Usage: | Building | Weight: | 10tons |
| High Light: | metal roll forming machine,cold roll forming machine |
||
Gear Box Driven Customized Panel Roll Forming Machine 18.5kw Power Formed
1.Machine Components
| S.N | Equipment name | Quantity |
| 1 | un-coiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | Cutting holder | 1 set |
| 4 | Hydraulic station | 1 set |
| 5 | Control system ( including control box) | 1 set |
| 6 | Conveyor Out table | 1 unit |
| 7 | Spare parts | 1 package |
| 8 | Drive system | 1 set |
| 9 | Cutting dies | 2 sets |
2.Technical Parameter
1). Decoiler
* Weight Capacity Of Decoiler: 3 Ton
* Inner Diameter. Φ460-520mm
* Outer Diameter. Φ1400mm
2). Roll Former
* Axis Diameter: 90mm
* Forming Roller stand: 10 Groups or according to customer profile
* Main Axis material: First grade 45# steel, heated and quenched
* Roller material: GCr15 Steel, Quenched and heated process
* Drive Type: Gear box
* Chain material: 45#steel, HRC45-50
* Machine Frame stand: 35# steel
* Main Power: 18.5 KW
3) Cutting Device
* Cutting type: Hydraulic cutting
* Hydraulic pump station power:7.5 KW
* Hydraulic Blade and cutter material: Cr12Mov, quenching process 58-62
* Cutting length tolerance: +/- 2.0 mm
4). Electrical System
* Voltage: 380V, 3 Phase 50Hz(can customized)
* PLC Electrical control system: Delta
* Length Controller: Encoder Frequency Control System
* Operation: Touch Screen
5) Runout Table:
* Non-power type
* 2m

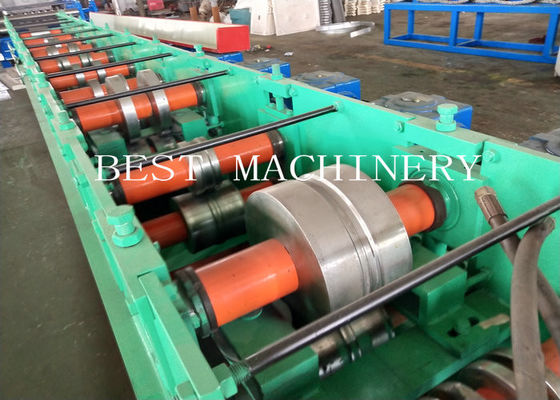

3. Machine photos for reference:
4.Why choose this machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
80mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available
5.FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier with CE,BV,SGS assessment (Audit report can be provided).
