Product Details:
|
| Name: | High Quality Roofing Sheet Roll Forming Making Machine Factory Price | Machine Color: | As Request |
|---|---|---|---|
| Power: | 6kw | Speed: | 8-12m/min |
| Roller Diameter: | 70mm | Roller Material: | 45#steel |
| Shaft Material: | 45#steel | Warranty: | 2 Years |
| Cutting: | Hydraulic | Blade: | Cr12 |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

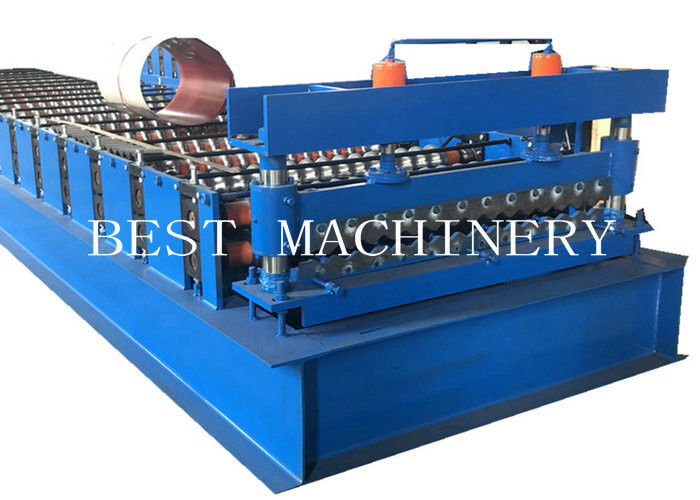

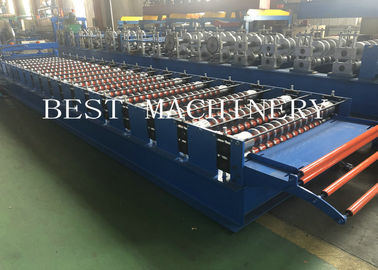

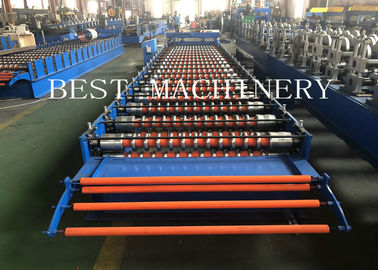

High Quality Roofing Sheet Roll Forming Making Machine Factory price
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Pressing die---------------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Main Parameter:
| No. | Parameter | ||
| 1 | raw material | suitable material | colored steel coil, galvanized coil, aluminum coil |
| feeding width | 1200mm | ||
| effective width | 988mm | ||
| thickness | 0.3-0.8mm | ||
| PS: the feeding&effective width can be any according to your need. | |||
| 2 | rollers | material | 45#steel |
| rows | 20 rows | ||
| 3 | shafts | material | 45#steel, solid ones |
| diameter | Φ90mm and 120mm | ||
| 4 | cutting blade | hydraulic cutting, Cr12 Mov | |
| 5 | capacity | 15-20m/min, can be faster as your need. | |
| 6 | weight | 13Tons | |
| 7 | control system | PLC control system with inverter inside to assure the working precision within 1mm | |
| 8 | dimension | 11500*1600*1550mm | |
| 9 | machine base | 400mm H beam | |
| 10 | middle plate | 20mm | |
| 11 | chains | double1.2 inch | |
| PS: the above are for reference, we can design according to your requirement | |||
Detail Information
1.DECOILER
(1)Inner Diameter: Φ508 – Φ610 mm
(2)Out Diameter: 1500 mm
(3)Max. Loading Capacity: 5000 kg

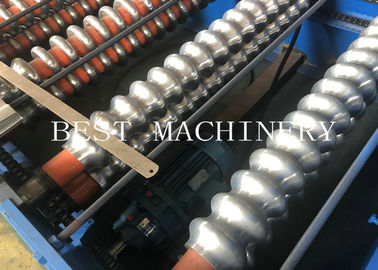

2.ROLL FORMING MACHINE
(1)Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
(2)Material for shaft: high grade No.45 steel after treatment
(4)Diameter of shaft: 70mm
(5)Frame panel thickness: 20mm
(6)Bottom frame: 36# H-section steel
3. ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 45 days after receiving downpayment
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
