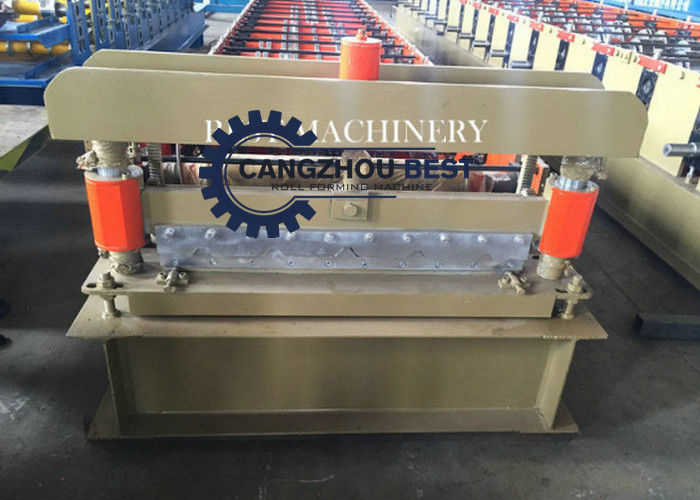

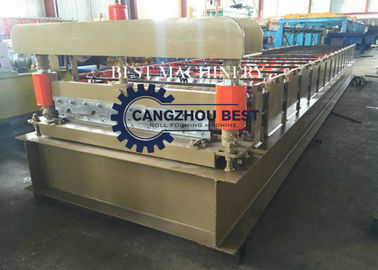

Cladding Profile IBR Metal Roofing Panel Sheet Roll Forming Machine PLC Control

Description
Product Name: Cladding Profile IBR Metal Roof Sheet Roll Forming Machine Material Thickness: 0.3-0.8mm
Coil Grade: Q245 Q345 Machine Color: As Request
Control System: PLC Power: 6kw
Cutting Type: Hydraulic Roller: 45#steel
Customized: Yes Warranty: 2 Years
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Cladding Profile IBR Metal Roof Panel Sheet Roll Forming Machine



Usage Of Roof Panel :

The roof panel machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength



Main Parameter

(1). Suitable material to process: PPGI coil and GI coil;
(2). Thickness of the plate: 0.2-0.8mm;
(3). Width of the plate: 914mm;
(4). Effective area for use: 762mm;
(5). Productivity: 8-15m/min;
(6). Roller stations: 16 rows;
(7). Diameter of the shaft: φ70mm;
(8). Material of roller: 45# steel with CNC machining, plated hard chromium surface;
(9). Material of main shaft: 45# steel with grinding process and then slack quench processed;
(10). Frame: welded with 350H section steel;
(11). Wall panel thickness: 16mm;
(12). Main motor power: 4KW;
(13). Hydraulic station power: 4KW;
(14). Main electrical control system: Panasonic PLC, Delta frequency changer, Delta touch screen, Omron counter;
(15). Material of cutter: Cr12MoV with hard treatment;
(16). Driving mode: single chain 1 inch;
(17). Power supply: 380V, 60HZ, 3 PHASES;



Detail Information



Decoiler

(1). 5T manual decoiler

Features: Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.

Power: None;

Power of the open and closure of segments: Mechanical;

Power of rotation of segment: Pull by forming system;

Number of segment: 4pcs;

Range of segment expansion: 460 ~ 520mm;

Height of center of the mandrel: 0.65m;

Feeding speed: depend on the roll forming machine speed;



Feeding Device

Sheet guiding device

Features: Ensure smooth& precise material feed.

Components: steel plate platform, two pitching rollers, position stopping block.

The coil is guided in the correct position and passed to the roll forming equipment.



Roll Forming Machine

Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;

Shaft: manufactured with 45# high grade steel by CNC machine tools;

Supporting frame: steel wallboard to guide the forming station bearing basement;

Roller stations:13-18groups

Shaft diameter:70mm

Bottom frame:20mm

Main power:3kw

Transmission:1''

Speed:8-12m/min



Cutter Device

Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

Power supply: hydraulic station;

Frame: welding steel frame;

Stroke switch: non-contact photoelectric switch;

Cutting after forming: cut the sheet after roll forming to required length;

Length measuring: automatic length measuring.

Power:3lw



Hydraulic System

Hydraulic station

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.



Electric control system

Automatic length measurement: one unit tooling of length measuring which is lightly pressed on the surface of the steel sheet; the tolling will roll with the moving speed of the steel sheet and then sense to measure its length; length inaccuracy can be amended easily.

Automatic quantity measurement;

PLC is used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved;

Control panel: Button-type switch, LED display length and quantity ;

Unit of length: millimeter;

Motor Over-Load, System Over-Current, Short circuit Protection function;

Display total length and total quantity produced.



Payment type:30%as deposit, 70% as balance before loading.



Installation and Training

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Sale Service:

1.we provide the technical support for whole life of our machines

2.If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc
