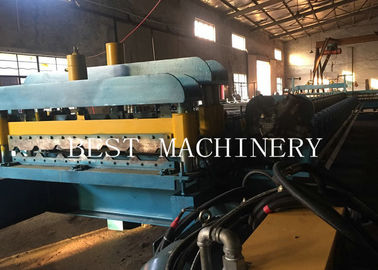

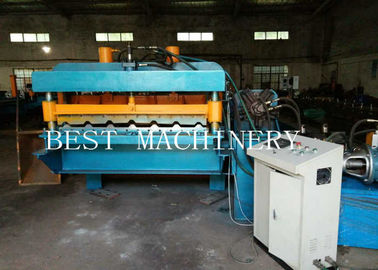

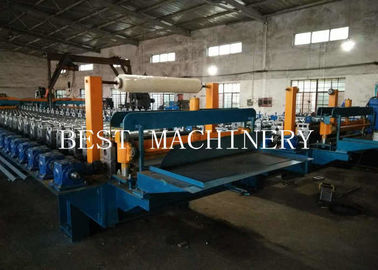

30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven

30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven
30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven

Large Image :  30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-1041
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven

Description
Name: 30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven Cutting: Hydraulic Cutting
The Shaft: 70mm Cutting Blade Material: Cr12
Screen: Color Touch Screen Bottom Frame: 350H Steel
Control System: PLC PLC Brand: Delta
Cutting Blade: Cr12 Roller Material: 453 Steel
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven



1. Company information:

    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



2. Machine details:

DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 0

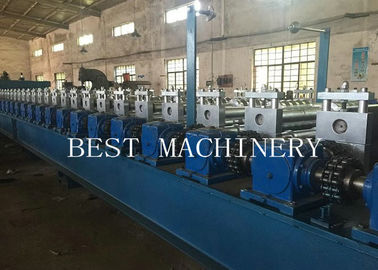

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 70mm

30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 1

CUT-OFF DEVICE

(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC58 – 62°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw

30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 2

PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

(5) Language: English and Chinese

(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

              30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 3

HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand

              30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 4

PRODUCTION SUPPORT TABLE

(1) No power type
(2) Length: 2m

              30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 5

Pre-cutting device



 30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 6





3. Packing



Standard Export Packing.

1) One 40ft container for loading one set machine with manual decoiler;
2) The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3) Spare parts and some small parts packed in plastic tooling box;
4) All Components Fixed by steel wire with Container.



4. Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.





5. FAQ:

1) Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.



2) Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need

your machines running in order to keep your business running.



3) How to visit your company?

a. Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick

up you.

b. Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then

we can pick up you.



4) What can you do if the machine broken?

Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.



6) You are trade company or factory?
We are factory, we are machine manufacturer. We have professional machine design team, we can control machine quality and price, it means you can use proper price get good quality machine



We can produce according to your requirements.



6. Optional:

1) Hydraulic decoiler:

30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 7

30M/MIN High Speed Roofing Sheet Tile Roll Forming Machine Gear Box Driven 8
