|Name:||3KW Chain Driven Metal Roofing Sheet Making Machine With PLC Control System||Roller Material:||Hydraulic Cutting|
|The Shaft:||70mm||Cutting Blade Material:||Cr12|
|Screen:||Color Touch Screen||Bottom Frame:||350H Steel|
|Control System:||PLC||Certification:||CE, BV,SGS|
|Place Of Origin:||China||Thickness:||0.3-0.8mm|
roofing sheet making machine,
metal sheet roof roll forming machine

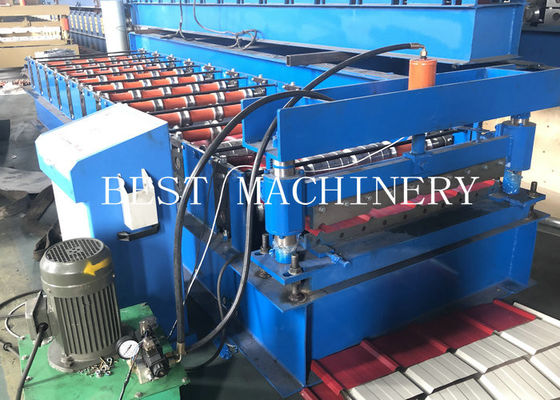

3KW Chain Driven Metal Roofing Sheet Making Machine With PLC Control System
1. Company information:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
2. Machine details:
Item (1) Automatic hydraulic Decoiler(optional)
|Loading Capacity||Max 5000KG|
|Suitable Coil ID||460-530mm|
|Suitable Coil Width||1300mm|
|Driving Motor Power||3.0KW|
|Pump Station Power||3.0KW|
Item (2) Feeding Platform
|Frame Structure||Steel Plate Welded|
|Platform Function||Bearing Guiding|
|Roller Guiding||2 Units|

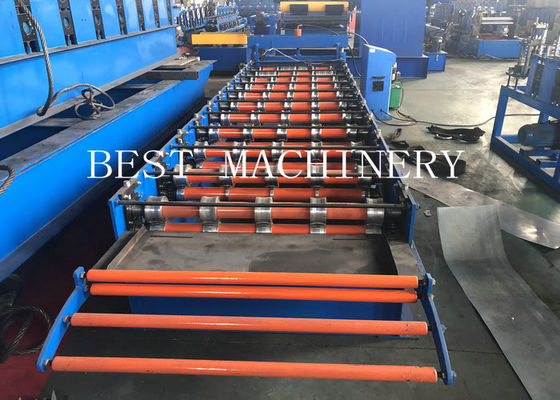

Item(3) Roll Forming Machine
|Under Frame||350H Beam Welded|
|Sidewall Thickness||20mm Steel Plate|
|Roller station||18 forming units|
|Sidewall Connect Bar||25mm,,zinc plated|
|Shaft diameter(Solid)||70mm-0.01~-0.03(with key-way)|
|Shaft material(Hard)||High grade 45# steel,heated and quenched cylindrical grinding,|
|Roller material(Hard)||High grade 45# steel,heated and quenched,hard chrome coated 0.05mm|
|Bearing Type||Standard 6210|
|Transmission Chain||1 inch(Jindun,Hangzhou)|
Item (4) PLC Control System (easy operation)
|PLC System||Delta PLC Programme|
|Other Components||+/-24V CHNT|
Item (5) Hydraulic Pump Station(Inside)
|Function||Supply power for hydraulic cutter|

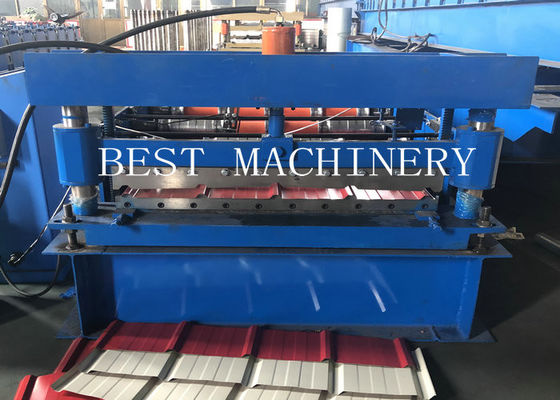

Item (6) hydraulic Cutting Device (guide pillar)
|Frame Structure||Steel Plates Welded|
|Working Method||Stop to post ,and post to cut|
|Guide Pillar||Long Life|
|Pump Motor Power||3.0KW|
|Auto Controlled||PLC and Encoder|
Standard Export Packing.
1). One 40ft container for loading one set machine with manual decoiler;
2). The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3). Spare parts and some small parts packed in plastic tooling box;
4). All Components Fixed by steel wire with Container.
4. Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station
(1hour), then we can pick up you to factory(40min).
Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west
station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 18 mounts, all technicals are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 18 months, if the broken parts can't repair, we will send
new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
We can produce according to your requirements.
