Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-500
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Portable Metal Roofing Sheet Roll Forming Machine , Standing Seam Roof Panel Machine

Description
Name: Portable Roll Forming Metal Roof Machines Standing Seam Roof Panel Machine The Shaft: 70mm
Cutting Blade Material: Cr12 Screen: Color Touch Screen
Bottom Frame: 350H Steel Control System: PLC
Raw Material: PPGI,GI,AL Condition: New
Usage: Roof Buliding Laoding Port: Tianjin
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Portable Roll Forming Metal Roof Machines Standing Seam Roof Panel Machine



1. About this machine:

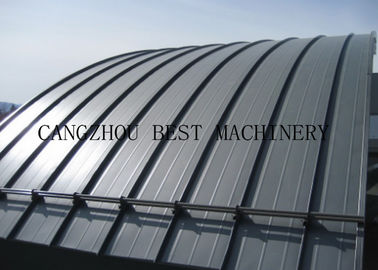

Metal roof panel is a cost-effective architectural metal roofing system with concealed clips and fasteners, it requires no mechanical seaming or separate seam cap. The narrow standing seam metal roof panel can be notched and bent to provide a smooth transition from roof to fascia or mansard. Knee caps are applied over the notched seams to create visual continuity..



2. Machine details:

DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 70mm

CUT-OFF DEVICE

(1) Material for Cut-Off Modular: Cr12 steel after treatment
(2) Hardness for Heat Treatment: HRC58 – 62°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw

(5) Machine can adjust siez, and produce different raw material width

PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

(5) Language: English and Chinese

(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand

PRODUCTION SUPPORT TABLE

(1) No power type
(2) Length: 2m



3. Main patermeters:

Dimension 6000*1700*1600mm
Weight about 6500KGS
Voltage of Motor 380V/50HZ/3PH or depend on customer
Main Motor Power for Running 7.5KW
Hydraulic Power for Cutting 3KW
Forming Steps 13Steps rollers
Working Speed 0-15m/min
Height of Roofing 65mm
Effective Cover Width 300,400mm,425mm,500mm
Feeding Material Width 475,575-578mm, 600-603mm
Thickness for Al Sheet 0.7-1.1mm
Thickness for Steel Sheet 0.7-1.0mm
Min. Width of Tapered Roofing 250mm
Min. Length of Tapered Roofing 1000mm
Cutting, Forming Tolerance ±2mm
Roller material

45# steel with machining----Fine Machining

---Polishing---Plated Chrome---Polishing;

Material of shaft High grade 45# forged steel
Shaft Diameter 70mm



4. Machine Component
No Items Quantity Remarks
1 Manual/Hydraulic Uncoiler 1set Up to customer
2 Main forming machine Pre-cutting device 1set Up to customer
Feeding device 1set
Hydraulic system 1set
Roll forming system 1set
Post cutting device 1set
Protective cover 1set Up to customer
3 PLC control system with touch screen 1set
4 Run out table 1set Up to customer



5. Packing

Standard Export Packing.

1). One 40ft container for loading one set machine with manual decoiler;
2). The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3). Spare parts and some small parts packed in plastic tooling box;
4). All Components Fixed by steel wire with Container.





6. Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.





We can produce according to your requirements.

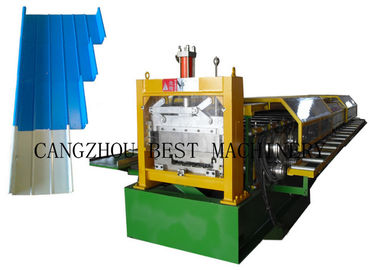

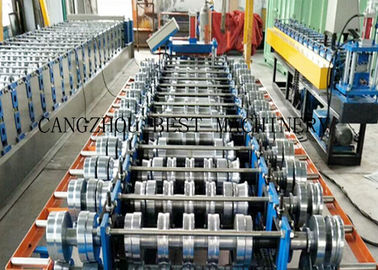

Machine Photos:

Portable Metal Roofing Sheet Roll Forming Machine , Standing Seam Roof Panel Machine 0

Portable Metal Roofing Sheet Roll Forming Machine , Standing Seam Roof Panel Machine 1
