Product Details:
|
| Name: | Double Layer Roof Sheet Making Roll Forming Machine PLC Control 380V50HZ | Material: | PPGI/GI |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | 45# Steel |
| Conreol System: | PLC | Warranty: | 2 Year |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

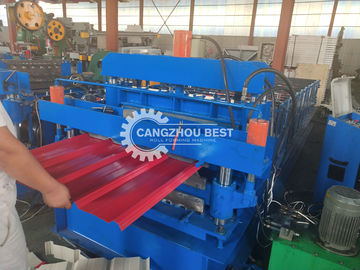

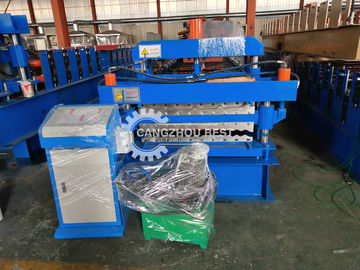

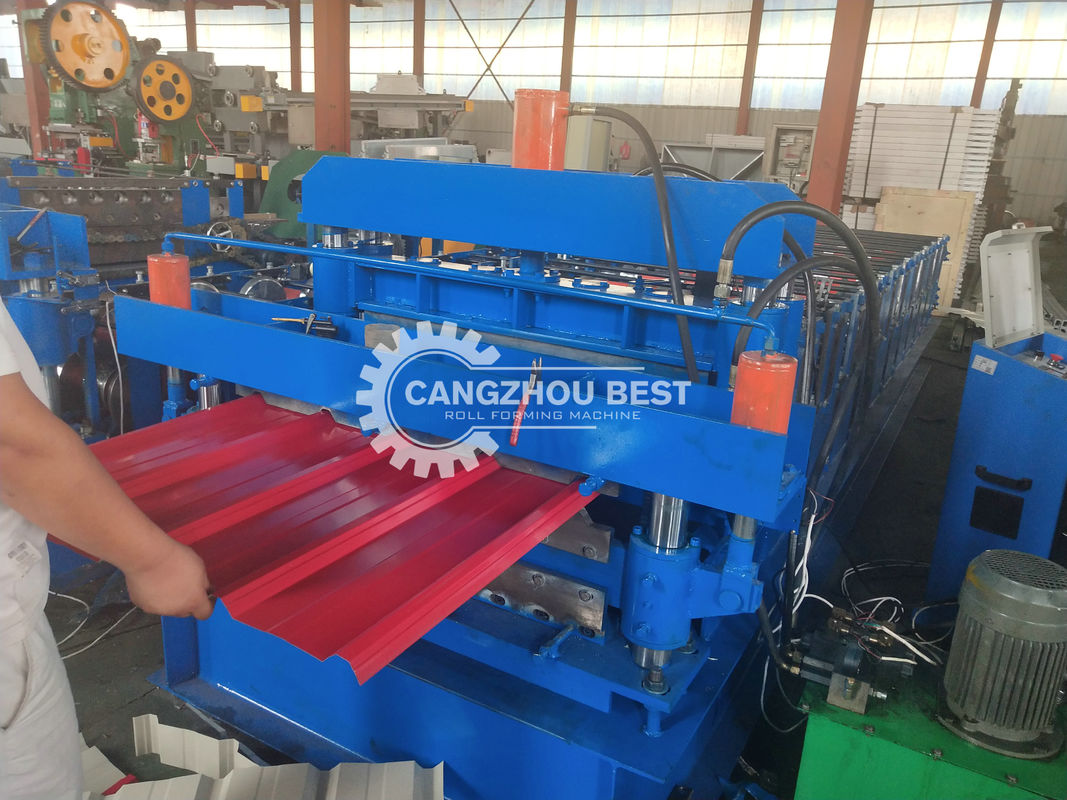

Double Layer Roof Sheet Making Roll Forming Machine PLC Control 380V50HZ
Max. Width: 1250 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs
Type:Manual Or Hydraulic

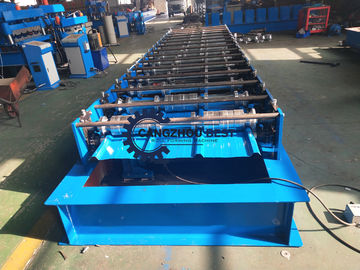

Roll Forming Machine
Material Thickness: 0.3-0.8 mm PPGI and GI
NO. of roller Stations:up 9groups Down11groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Frame panel thickness:14mm
Bottom frame: 36# H-section steel
Motor Power: 3kw
Driven type:0.6＂Chain
Speed:8-12m/min
Diameter of shaft: 70mm
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Cutting Device
| Type |
Hydraulic, Automatic Cut-Off |
|
Material for Cut-Off Modular |
Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60° |
|
Motor for Hydraulic Stand |
3kw |
Control System
| Type |
PLC Frequency Control System with touch screen |
|
PLC Brand |
Delta |
|
Encoder Brand |
Omron |
| Length Error |
±2mm |
| Language |
English and Chinese |
| Voltage |
380v/50HZ, 3Phase |
Hydraulic Pump
|
Motor power |
3kw |
|
Oil Type |
46# hydraulic oil |
| Pump Brand |
China brand |
Output Table
No power type
Length: 2m
Our Service
Pre-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
After-Sales-Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Main Features

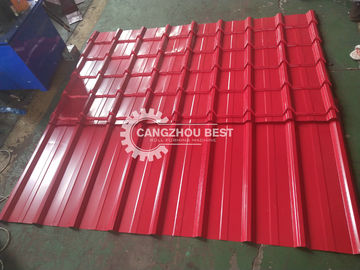

1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.two years warranty for free, and beyond two years if any part broken, tell us and pay us we delievery any part u need. And support technical skills for machine for whole life.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine only can produce one profile. and we also can produce double or three layer roll forming machine.
Other Product
Roof sheet machine, roof tile machine, ridge cap machine, double layer machine, c z purlin machine, highway guardrail machine, cable tray machine, water tube machine,decking sheet machine, roller shutter door machine, door frame machine, ceiling drywll machine and so on.
