Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

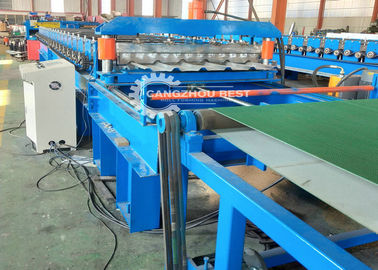

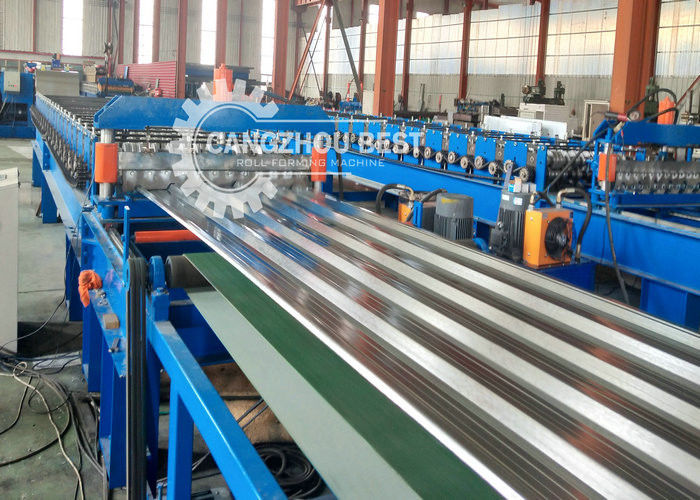

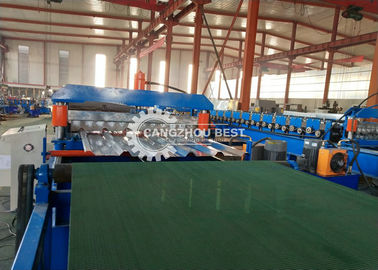

Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life

Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life
Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life

Large Image :  Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: BE-1020
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life

Description
Name: Hydraulic High Speed Metal Roofing Sheet Panel Roof Roll Forming Machine Roller: 45# Steel
Shaft: 70mm Blade Material: Cr12
PLC Box Screen: Color Touch Screen Bottom Frame: 350H Steel
Control System: PLC Control Box Material: PPGI, GI, AL
Condition: New Cutting Type: Hydraulic Cutting
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Hydraulic High Speed Metal Roofing Sheet Panel Roof Roll Forming Machine





1. Machine Including:
Item Name Qty
1 Manual/Hydraulic Decoiler 1
2 Feeding platform with hand cutting system 1
3 Main forming system 1
4 Hydraulic cutting system 1
5 Hydraulic pump station 1
6 Electrical motor 1
7 PLC control system 1
8 Touch screen operation 1
9 Finished products receive table/ auto stacker 1
10 Safety shield(optional) 1



Above are main components for our roll forming machine, and we adopt high quality raw material to guarantee our machine long-life working. All electrical parts are famous brand.

2. Machine profiles:

The finished product of High Quality IBR Metal Roof Sheet Panel Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.



3. Main Parameters:

No. High Quality IBR Metal Roof Sheet Panel Roll Forming Machine
1 Suitable material PPGI/Aluminium sheet/galvanized sheet/various sheet plates
2 Thickness of coil sheet 0.3-0.8mm
3 Coil width 1220mm
4 Effective width 1020mm
5 Material of main frame 350H steel
6 Diameter of Soild shaft 70mm, high grade 45# steel
7 Roller

High grade 45# steel, quenched and tempered treatment,

hard chrome plated 0.05-0.07mm

8 Thickness of middle plate 20mm, 45# steel plate
9 Forming station 19 rows
10 Drive type By chain(1.0 inch), link bearing model 6210
11 Power of main motor 7.5*2 kw, Lichao, Shanghai, with reducer
12 Sidewall connection bar 25mm, zinc plated
13 Forming speed About 25m/min
14 Hydraulic pump station 5.5kw, 40# hydraulic oil
15 Servo motor 3kw
16 PLC DELTA(TAIWAN)/Mitsubishi
17 Material of razor blades Cr 12, quenching 58-62℃
18 Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy ±1mm, far better than industrial standard ±3mm.

19 Switch CHNT
20 Frequency changer SAJ



4. Machine details:

DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 70mm

CUT-OFF DEVICE

(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC58 – 62°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw

PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

(5) Language: English and Chinese

(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand

PRODUCTION SUPPORT TABLE

(1) No power type
(2) Length: 2m



5. Photos for reference:



Decoiler



Type Manual type(standard) Hydraulic type(option)
Photo Standing Seam Steet Boltless Roof Panel Roll Forming Machine Hydraulic Cutting Type Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life 1
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm



Output table

Type

Manual


Standing Seam Steet Boltless Roof Panel Roll Forming Machine Hydraulic Cutting Type


Auto(option)
Standing Seam Steet Boltless Roof Panel Roll Forming Machine Hydraulic Cutting Type
Length 1.5m-2m 6m or 12m



Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life 4

Hydraulic High Speed Metal Roofing Sheet Roll Forming Machine With Long Life 5
