New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine

New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine

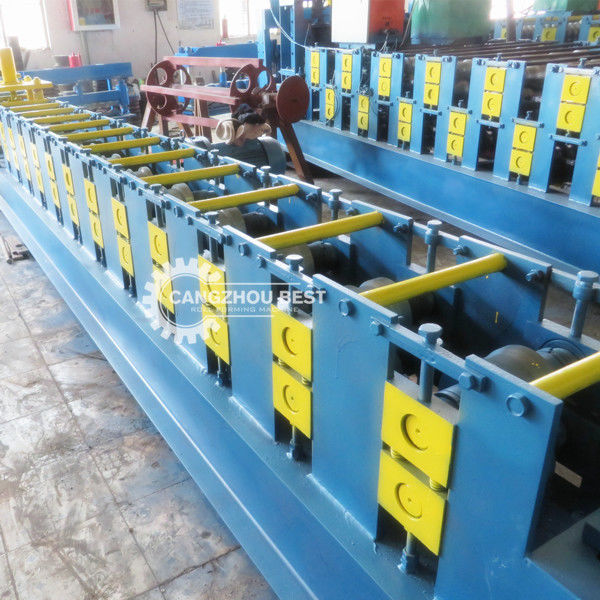

New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine

Large Image :  New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-70
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Packaging Details: Standard
Delivery Time: 35days

New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine

Description
Name: Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine Color: As Your Require
Voltage: 380V/50HZ/3PHASE Material: PPGI/GI
Frame Panel Thickness: 14mm Warranty: 2 Year
High Light:

cold roll forming machine

,

profile roll forming machine

                  Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine



Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



Work Flow

Decoiler------feeding------roll forming------cut to length----multi-revising -----output table

New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine 0



Machine Component

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
Multi Revsiting 1set
PLC Control Box 1set
Hydraulic Pump 1set
Output Table 1set



Decoiler

Max. Width:300 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 3000 kgs

Type: Manual Or Hydraulic (Optional)



Roll Forming Machine

Material Thickness: 0.6-1.2mm PPGI and GI

Roller Stations: 14 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 65mm

Bottom frame: 36# H-section steel
Motor Power: 3kw

Driven type: 1.0"Chain

Diameter of shaft: 65mm

Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°



Cutting Device

Type

Hydraulic, Automatic Cut-Off

Power 3kw
Cutting Blade Material

Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60°





Multi Revsiting Device

Rollers: 1 group

Material for roller: 45# steel polished and coated with chrome HRC55-60°

Functon:it uses for revising the finished product to make the product straight.



Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese



Hydraulic Pump

Motor Power 3kw
Pump Brand

China brand

Oil Type

46# hydraulic oil





Output Table

No power type
Length: 2m



Packing Detall

1.

40 GP container ; main machine naked and fastened with iron wire in the container.

2.

Rollers were painted with oil and packed with plastic film.

3.

Electrics devices be packed with wooden box.for Standard export packing.

4.

All Components Fixed by steel wire with Container.

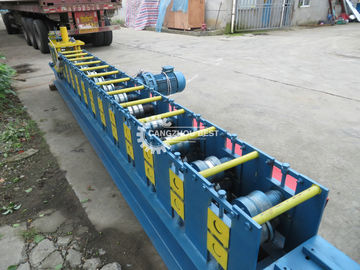

New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine 1

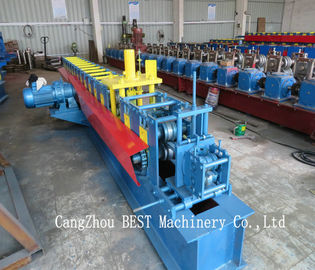

New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine 2

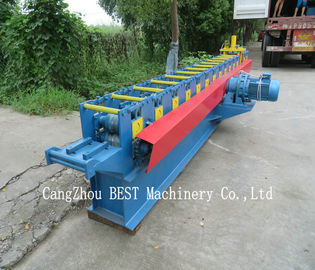

New Automatic Roller Shutter Door Steel Sheet Making Roll Forming Machine 3
