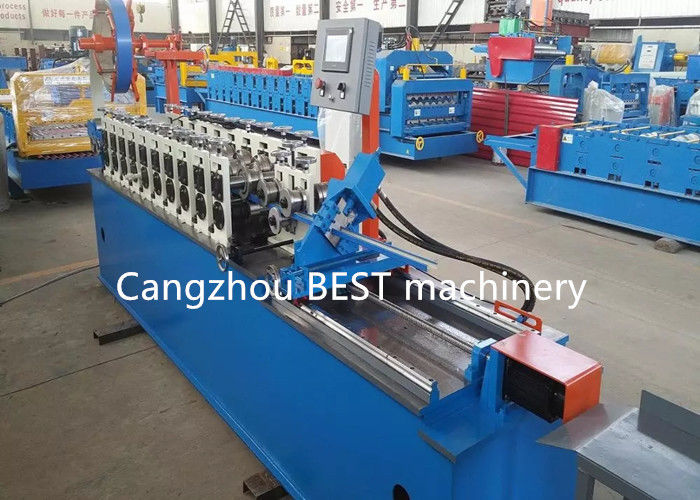

High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine

High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine
High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine

Large Image :  High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY50x24
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 8500/ SET
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine

Description
Product Name: High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine Control System: PLC
Cutting Type: No Stop Hydraulic Cutting Warranty: 2 Years
Lifetime: 10 Years Roller Material: Cr12 Steel
Shaft Material: 45# Steel
High Light:

steel stud roll forming machine

,

profile roll forming machine

High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine

Working flow


Decoiler------feeding------roll forming---------punching-------cut to length-----output table

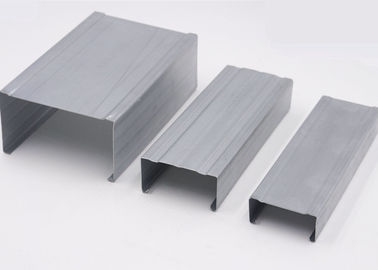

Profile Drawing



High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine 0



Machine Components



Name Quantity(set)
De-coiler 1
Feeding guiding Device 1
Roll Forming Part 1
Hydraulic cutting Device 1
Computer control box 1
Hydraulic System 1
Run-out table 1



Parameter



Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System PLC Panasonic Inverter
Main Frame 350mm H-Beam
Main Power 5.5 kw
Pump Power 3kw
Power Supply 3-Phase,380V,50Hz
Forming Speed 12-14m/min
Hydraulic Pressure 18-20MPa
Forming Size 80mm
Feeding Thickness 1.5-3.2mm
Roller Station 12 Stands
Roller Diameter 60mm
Backboard Thickness 16mm
Chain Size 66mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 9500×1400×1350mm
Total Weight 6T





Working conditions
1. Machine size 10m x 1.2m (L XW)
2. Working size 20m x 2.5m (LXW)
3. Power supply 8.5kw
4. Frequency 50-60HZ
5. Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8. Lift device 3-5t forklift or crane



High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine 1



High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine 2



High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine 3





Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.



High Efficiency Metal Stud Roll Forming Machine , Stud And Track Making Machine 4
