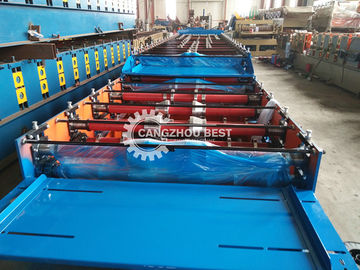

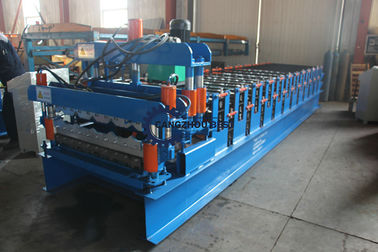

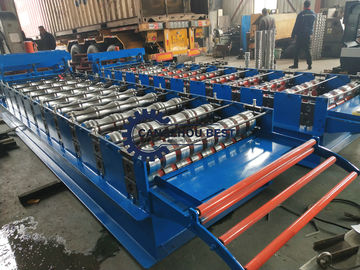

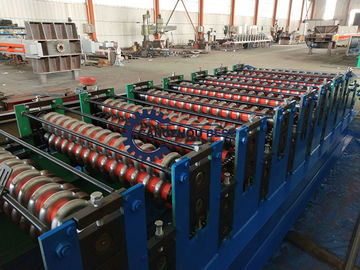

Auto 840 Metal Roofing Sheet Roll Forming Machine PPGI / GI Material With PLC Control

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Auto 840 Metal Roofing Sheet Roll Forming Machine PPGI / GI Material With PLC Control

Auto 840 Metal Roofing Sheet Roll Forming Machine PPGI / GI Material With PLC Control
Auto 840 Metal Roofing Sheet Roll Forming Machine PPGI / GI Material With PLC Control Auto 840 Metal Roofing Sheet Roll Forming Machine PPGI / GI Material With PLC Control Auto 840 Metal Roofing Sheet Roll Forming Machine PPGI / GI Material With PLC Control Auto 840 Metal Roofing Sheet Roll Forming Machine PPGI / GI Material With PLC Control

Large Image :  Auto 840 Metal Roofing Sheet Roll Forming Machine PPGI / GI Material With PLC Control

Product Details:
Place of Origin: China,Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-840
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days
Supply Ability: 15sets/month

Auto 840 Metal Roofing Sheet Roll Forming Machine PPGI / GI Material With PLC Control

Description
Name: Auto 840 Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control Color: As Your Require
Material: PPGI/GI Control System: PLC
Roller Station: 11groups Warranty: 2year
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

               Auto 840 Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control

Company Proifle
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

Machine Component

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
PLC Control Box 1set
Hydraulic Pump 1set
Output Table 1set


Working Flow
Decoiler------feeding------roll forming------cut to length-----output table

Decoiler

Width 1250mm

Inner Diameter

450-550mm

Out Diameter

1500mm
Capacity 5000kg
Type Manual Or Hydraulic


Roll Forming Machine
Material Thickness: 0.3-0.8mm PPGI and GI
Roller Stations: 11groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 70mm
Shaft Material: 45# steel
Frame panel thickness: 14mm
Bottom frame: 36# H-section steel
Motor Power: 3kw
Driven type: 0.6"Chain
Speed:8-12m/min

Cutting Device

Hydraulic Power 3kw
Cutting Type

Hydraulic, Automatic Cut-Off

Cutting Blade Material

Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°


Control System
Type: PLC Frequency Control System with touch screen
PLC Brand:Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

Hydraulic Pump

Motor Power 3kw
Oil Type

46# hydraulic oil

Pump Brand

China Brand



Output Table
No power type
Length: 2m

Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.



WHY CHOOES CHBEST COMPANY

1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2) Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.



4) Q: What can you do if the machine broken?

A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q: Can you be responsible for transport?

A: Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q: Can you supply the raw materials?

A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

Hope we could establish win-win business relations in the soon future!
