Roller Shutter Door Roll Forming Machine , Guide Rail Cold Forming Machine

Description
Name: Roller Sutter Door Guide Rail Roll Forming Making Machine Door Rail Machine Thickness: 1.2mm
Cutting Type: Hydraulic Customized: Yes
Control System: PLC Control Box Side Wall Thickness: 20mm
Voltage: As Your Request Place Of Origin: Hebei,China
Language: English Chinese And Other Key Selling Points: Automatic
High Light:

cold roll forming machine

,

profile roll forming machine



Roller Sutter Door Guide Rail Roll Forming Making Machine Door Rail Machine



1. What is the application of dor guide rail roll former?

Door guide rail roll former can produce many types of roller shutter guide rails, usually C shape and U shape. A roller shutter or roller door is a type of door or window shutter consisting of many horizontal slats hinged together. A roller shutter door is made up of several parts like the following picture figures out. And the roller shutter guide rail is an important part. Roller shutters have many applications, including doors for vans, garages, kitchens, schools, prisons and warehouses.



2. Technical parameters:

(1) Processing material: aluzinc/galvanized steel/colored steel coil

(2) Material thickness: 0.3-1.2mm

(3) Main motor power: 5.5kw

(4) Pump power: 3kw

(5) Shaft diameter: 75mm and solid forming shaft

(6) Forming steps: 16 steps.

(7) Roller material: 45# forged steel, with hard chrome plating

(8) Main frame: 350H steel

(9) Medium plate thickness: 20mm

(10) Control systerm: PLC computer control with inverter

(11) Power supply: 380V, 3 Phase, 60Hz or as your requirement



3. Details:

No
Name
Unit
Qty




1



Man-made decoiler



set


1
*Max width 300mm
*Inner diameter -460-510mm
*Max loading capacity 1000kg
*Manual operating type manual expansion to tighten the coil
*Break down drive whole line stop while decoiler idle
2
Feeding Table
set
1






3





Forming Rollers





set





1
*Forming Station 16 nos
*Forming Rollers material Cr12
*Forming Rollers hard treatment HRC 58-60
*Shaft of roller Diameter 70mm
*Shaft material 40Cr,heat treatment, refine grinded
*Machine frame: steel welding
*Main sidewall thickness 20mm
*Machine driven by universal joints via gearbox
*Roll forming motor 5.5kw with frequency inverter controller






4





Hydraulic cutting with hole punching





set





1
*Hydraulic pump stand 1 set
*Hydraulic Components taiwanese
*Hydraulic System discharging protection with wind cooler
*Edge cutting 2 sets both ends
*Middle joint hole punching 23sets/152.4mm
*Fire testing hole 2 sets both ends
*Mould standard SKD-11 Steel Japanese
*Mould frame&plate S45C
*Mould pin SKH-9 steel Japanese
*All mould treatment By slow-feeding Nc wire cutting


5


Profile Discharger


set


1
*Driven machinical Auto Head
*Operation Full automatic along with forming machine


6


Electric Control system


set


1
*Frequency converter Silin ,Taiwanese
*PLC Fatek ,Taiwanese
*Touch screen weinview Taiwanese
*Profile length cutting forming machine stops then cut
*Operational controller: touch screen knob switch emg
Brake down and so on
(6)Power supplier 380V 50Hz 3phase





4. Our Machine Advantage

1. Good quality: We have a professional designer and experienced engineer team.And

the raw material and accessories we use are good.

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within 18 month since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.



5. Photos:

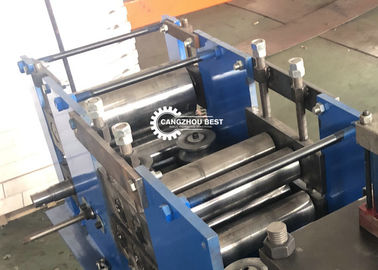

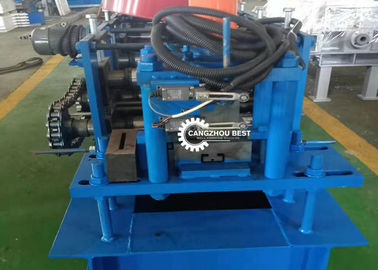

Roller Shutter Door Roll Forming Machine , Guide Rail Cold Forming Machine 0

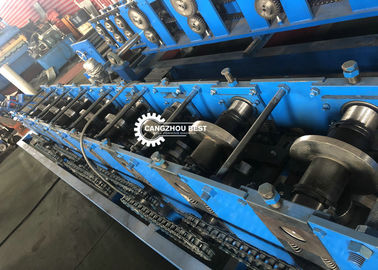

Roller Shutter Door Roll Forming Machine , Guide Rail Cold Forming Machine 1
