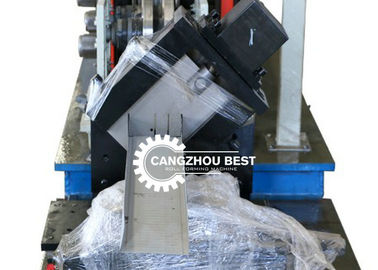

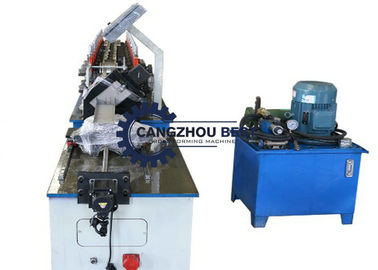

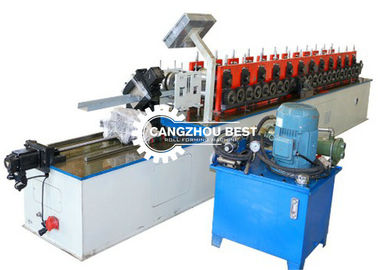

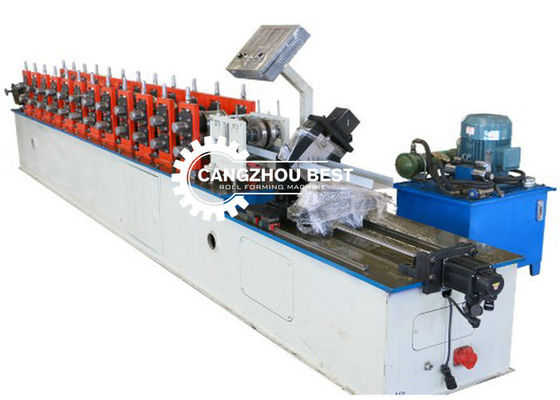

Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall

Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall
Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall

Large Image :  Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall

Description
Product Name: Gypsum Board Drywall Galvanized CU Stud And Track Roll Forming Machine Control System: PLC
Cutting Type: Hydraulic Warranty: 2 Years
Usage: Ceiling Material: GI,AL
Production Capacity: 25-30M/MIN Key Selling Points: Long Service Life
Structure: 350H Steel Roller Material: Cr12
High Light:

steel stud roll forming machine

,

profile roll forming machine

Gypsum Board Drywall Galvanized CU Stud and Track Roll Forming Machine

1. Product profile:

(1). Brief Introduction of C keel roll former stud and track interchangeable metal steel purline roll forming machine

The Fully automatic high speed Suspended Ceiling T grid roll forming machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.


2). Working Flow of C keel roll former stud and track interchangeable metal steel purline roll forming machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter



2. Advantage:

- This EU type of light gauge steel roll forming machine line include 3 tons of manual decoiler, roll forming host, PLC control system, hydraulic cutting system and output table

- The manual decoiler is free for each machine, it can hold 3 tons of strips, and normally the space between manual decoiler and the machine is 3 meters.

- Feeding table has 1 row of roller to make the strip flat, and the roll forming host can produce the light keels as per customer's request.



3.Technical Parameters:

No. Item Specification
1 Can Formed Material GI.
2 Equipment operation Automatic
3 Voltage 380V 50Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.3-0.8mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 4500mmx800mmx1200mm
8 Speed 25m/min
9 Diameter of shaft 40mm
10 Weight of the Machine 2500-3500KGS
11 Material of rollers Cr12
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 8kw
15 Power of hydraulic system 4kw
16 Power of main molding core 4kw



4. FAQ:

1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2) Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.



4) Q: What can you do if the machine broken?

A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q: Can you be responsible for transport?

A: Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q: Can you supply the raw materials?

A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.



5. Application:

Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall 0

Galvanized CU Stud And Track Roll Forming Machine For Gypsum Board Drywall 1
