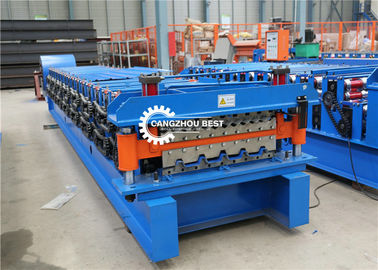

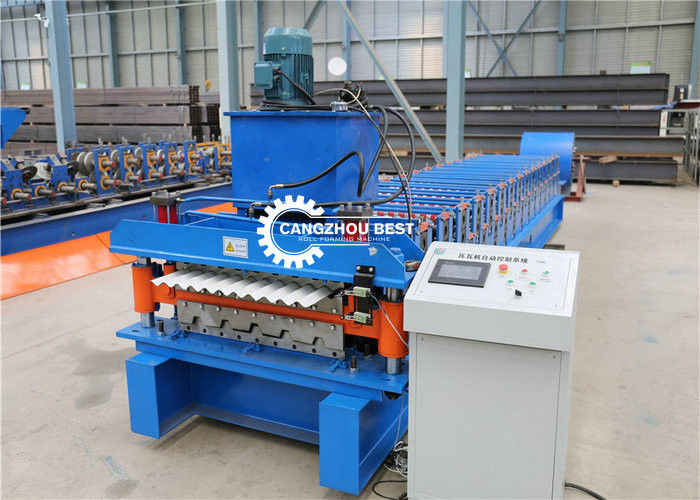

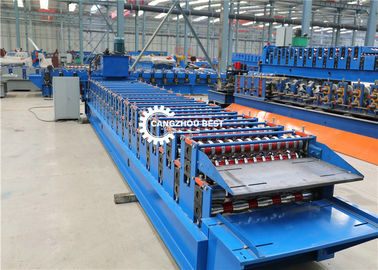

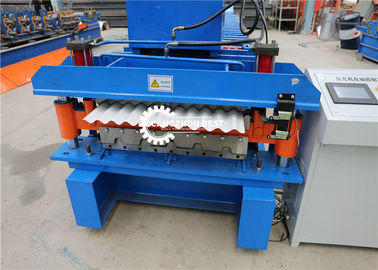

Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762

Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762
Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762 Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762 Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762 Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762

Large Image :  Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY762
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762

Description
Product Name: South Africa Popular Design YX686/YX762 Double Layer Roofing Sheet Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 8m/min Hydraulic Power: 5.5
Machine Power: 3kw Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine



South Africa Popular Design YX686/YX762 Double Layer Roofing Sheet Roll Forming Machine

Specification

A Sheet Specifications



1. Coil Type Pre-painted coil,Galvanized steel,Aluminum
2. Width 1200mm
3. Thickness range 0.3mm-0.8mm (max)
4. Yield stress(mm) Q235
5. Effective width 1000mm



B Machine Specifications

1.

Power

requirement



Type 220v/380v/3ph/50hz
    Main Motor power 5.5kw
    Cutter power 4kw
2. Forming speed(m/min) 8-15 Not include the time of cutting
3. Forming stations 16 Depend on actual design
4. Thickness of structure 14mm
5. Forming shaft diameter(mm) 70
6. Chains 1 inch
7. Sleeve 5mm thickness thick wall pipe instead of galvanized pipe
8. Type of cutting Roll formed and length-set cutting
9. Control system PLC Panasonic Inverter Schneider
10. Install dimension(depend on the final design) 7.5m×1.5m×1.2m Without panel length
11. Total weight (Approx) 4T Depend on final design
12. Screen Text screen /touch screen



Components of line:

1) Manual De-coiler ------------------------------------------------------ 1 set

2) Guiding Device--------------------------------------------------------- 1 set

3) Roll Forming System--------------------------------------------------- 1set

4) Cutting Device---------------------------------------------------------- 1set

5) Hydraulic System------------------------------------------------------- 1 set

6) PLC Control System-----------------------------------------------------1 set

7) Run out table ----------------------------------------------------------- 1 set



Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.



Installation and training:

1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 18 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.



Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762 0

Double Layer Roofing Sheet Roll Forming Machine Popular Design YX686/ YX762 1
