Product Details:
|
| Product Name: | Metal Roofing Corrugated Steel Sheet Tile Double Layer Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Machine Power: | 3kw+3kw |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| Certification: | CE, BV, SGS | Control Mode: | Plc |
| Tile Type: | Steel | Weight: | 4.5tons |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
1. Machine profile:
metal sheets roofing machine, customized design
corrugated roll forming machine, 18month guarantee period
trapezoid roofing tile roll forming machine, good after-sell service
for this double layer metal sheets roofing machine, you can choose corrugated and trapezoid type, also can choose IBR and wave type,by this design, can save space and cost, but kindly note one thing: both layers cannot run at same time
2. Specification:
| Item NO | Description | Offered specification |
| 1.0 | Roll forming machine | Roof sheet |
| 1.1 | Rolling speed | 15-20m/min |
| 1.2 | Rolling thickness | 0.25-0.8mm |
| 1.3 | Raw material | Galvanized steel sheet & pre-painted steel sheet up to 550mpa |
| 1.4 | Control system | PLC & Transducer(Mitsubishi ) |
| 1.6 | dimension | 11000×1500×1500(mm) |
| 1.7 | The material width | 1200mm |
| 1.8 | Effective width | 1000mm |
| 1.9 | Roller stations | 25 stations |
| 1.10 | Roller material | 45#forge steel, coated with chrome |
| 1.11 | Shaft diameter | φ75mm ,material is 45# forge steel |
| 1.12 | Transmission | By chain |
| 1.13 | Material of chain | 45# forged steel with frequency quenching |
| 1.14 | Maim motor power | 7.5kw |
| 1.15 | Hydraulic station power | 3.0kw |
| 1.16 | Hydraulic pressure | 12Mpa |
| 1.17 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.18 | Tolerance | 10m+-2mm |
| 1.19 | Electric source | 415 volts, 3 phase and 50 Hz or at buyer’s request |
| 1.20 | Frame | 350mmX175mm H type steel |
| 1.21 | Color of the machine | According customer’s requirements dark green |
| 1.22 | Container need | 1 x20 feet |
3. Cutting
(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC55 – 60°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw
4. PLC
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron
(4) Length Error: ±2mm
(5) Language: English and Chinese
5. FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

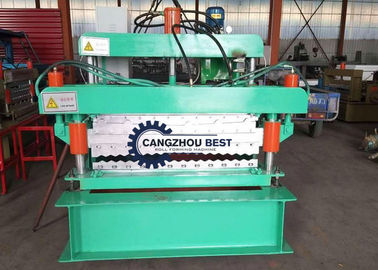

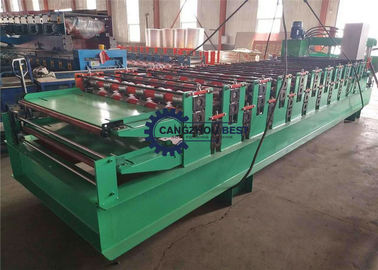

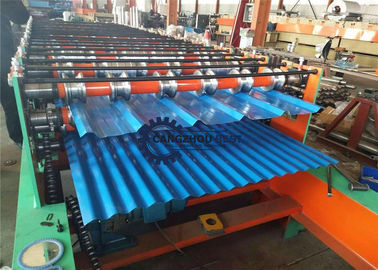

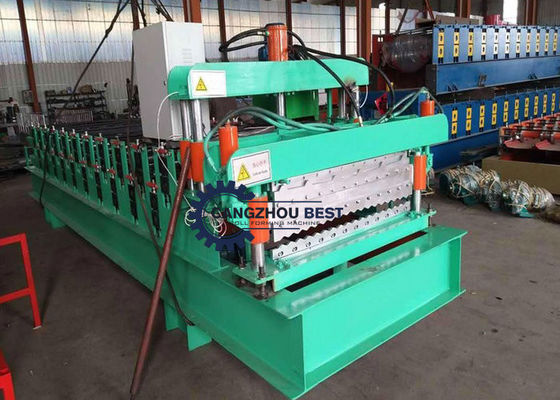

6. Photos:
