Product Details:
|
| Name: | Glavanized Steel Sheet Roof Sheet IBR Roll Forming Machine | Material Of Roller: | 45# Steel Polished And Coated With Chrome |
|---|---|---|---|
| Material Of Shaft: | 45# Steel Polished And Coated With Chrome | Diameter Of Shaft: | 70 Mm |
| Frame Panel Thickness: | 20 Mm | Bottom Frame: | 350 H-section Steel |
| Motor Power: | 3kw | Raw Material: | 0.3-0.8 Mm |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

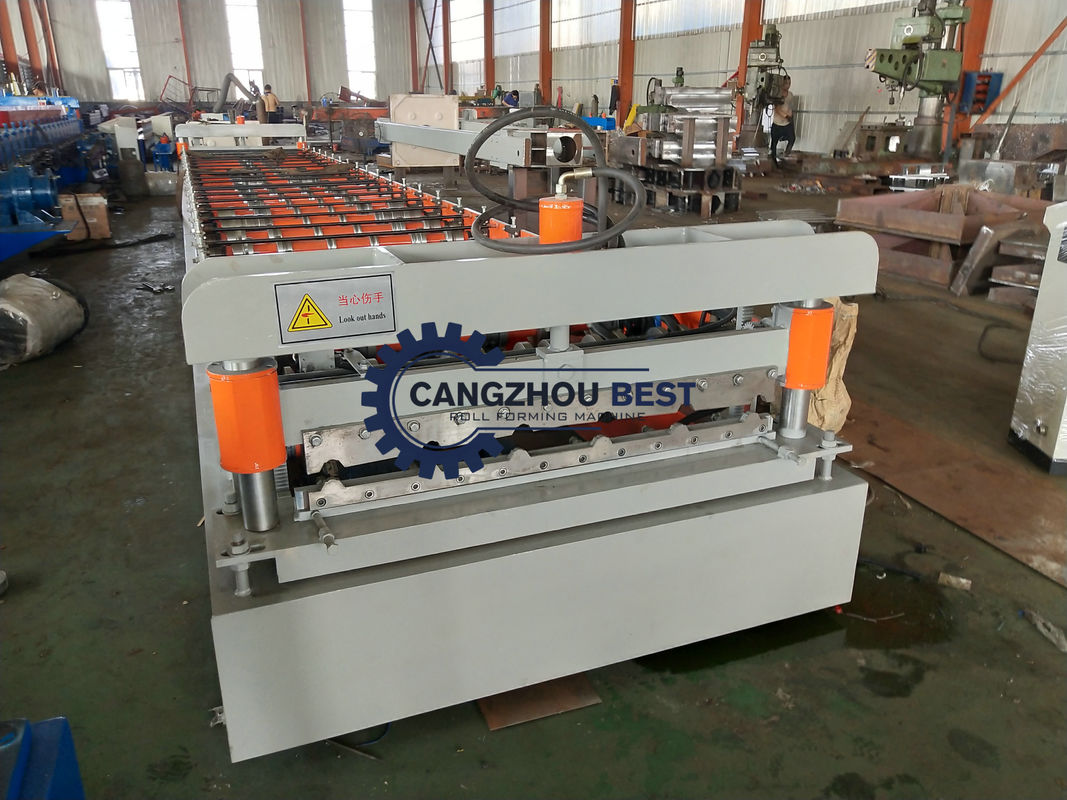

Glavanized steel sheet Roof Sheet IBR Roll Forming Machine
Working flow:
Decoiler------feeding------roll forming------cut to length-----output table
Machine parameters
|
Specification for Botou Roof Sheet IBR Galvanized Steel Roll Forming Machine
|
|||
|
Material Specification
|
color steel sheet
|
||
|
Input Width
|
1000mm/1200mm/1250mm (according to customer requirements and profile drawing)
|
||
|
Output Width
|
up to final design
|
||
|
Coil thickness
|
0.3-0.8mm
|
||
|
Forming speed
|
8-15m/min
|
||
|
Main power
|
5.5kw
|
||
|
Hydraulic power
|
3kw
|
||
|
Main frame
|
360H steel welded
|
|
|
|
Roller station
|
up to final design
|
||
|
Roller material
|
high grade No.45 forged steel, with 0.05mm plated coating
|
||
|
Shaft material
|
high grade No.45 forged steel,diameter 75mm
|
||
|
Middle plate thickness
|
16mm
|
||
|
Chain transport
|
1inch
|
|
|
|
Electric control system
|
PLC Delta from Taiwan
|
|
|
|
Dimension
|
6.5m*1.4m*1.5m
|
||
|
Total Weight
|
around 3.5T
|
||
|
Voltage
|
380V/50HZ 3Phase or as your need
|
||
Main technical parameter:
1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
2. ROLL FORMING MACHINE
(1) Material Thickness: 0.2-0.8mm PPGI and GI
(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 350 H-section steel
(8) Motor Power: 3kw
(9) Driven type: 1＂Chain
(10) Speed:8-12m/min
3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Voltage: 380v/50HZ, 3Phase
| Working conditions | |
| 1. working size | 22m x 2m x 4m |
| 2. Power supply | 6kw |
| 3. Frequency | 50-60HZ |
| 4. Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7. Lift device | 3-5t forklift or crane |
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
