Product Details:
|
Name: | Cover Box Profile Roll Forming Machine For Garage Roller Shutter Door | Brand: | CHBEST |
---|---|---|---|
Drive Line: | Chain Or Gear Box | Certification: | CE,ISO,TUV,BV |
Cutter Material: | Cr12 , Quenched | Roller Material: | Cr12 Steel Quenched |
Warranty: | 18 Month | Raw Material: | Galvanized |
Production Capacity: | 8-12m/min | Side Wall Thickness: | 20mm |
High Light: | cold roll forming machine,profile roll forming machine |
Cover Box Profile Roll Forming Machine For Garage Roller Shutter Door
2. Machine parameters:
1. Steel Sheet Thickness: 1.5-2mm (or as requirement )
2. Transmission way: gear box
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min
7. Roller Groups: about 10 stations
8. Roller Material: GCr15, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel or aluminum coil
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 7.5 Kw
12. Tolerance:+-0.5mm
13.Control System:PLC
No. |
Name |
Details |
1 |
Material |
PPGI,GI or as your Customized |
2 |
Profile design |
Standard or as custom |
3 |
Size |
5800*950*1350mm |
4 |
Weight |
2300kg |
5 |
Speed |
40m/min |
6 |
Rollers |
Cr12 |
7 |
Drive |
Chain or Gear |
8 |
Cutter |
Cr12 |
9 |
Control system |
PLC Delta or custom |
10 |
Auto operation |
1 or 2 workers |
3. Components of production line
No. | Name | Unit | Qty |
1 | Main forming machine | set | 1 |
2 | PLC control system | set | 1 |
3 | Hydraulic pump station | set | 1 |
4 | Cutting system | set | 1 |
5 | Electric motor | set | 1 |
6 | Manual decoiler | set | 1 |
7 | Some spare parts |
4. Our Key Strength
1. Four technicans on the roll forming machine filed over 20 years.
5. Service and Terms:
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% ofthe total contract value to be paid by T/T after inspection by buyer in seller's factory while
before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the
cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary everyday.
Warranty: 18 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee

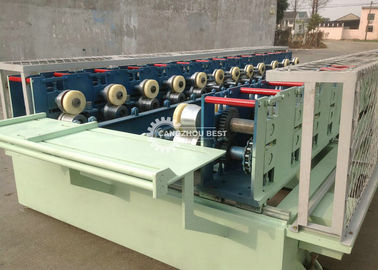

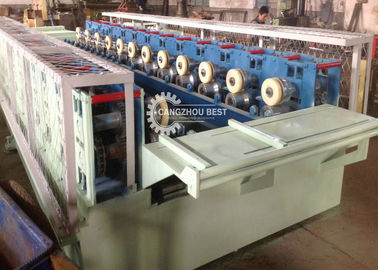

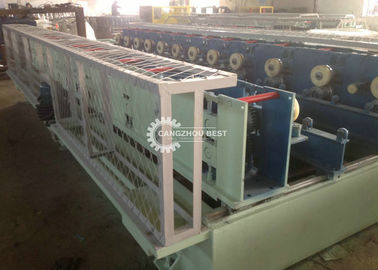

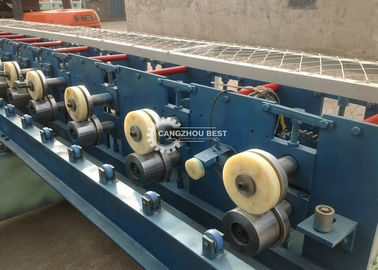

6. Photos:
