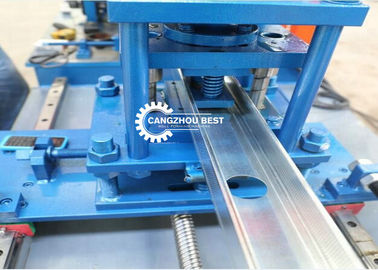

Product Details:
|
| Product Name: | High Speed Double Line Stud And Track Roll Forming Machine/Main Channel/Drywall | Color: | Blue Or According To Your Requirement |
|---|---|---|---|
| Control System: | PLC | Cutting Type: | Non-stop Cutting |
| Warranty: | 2 Years | Lifetime: | 10years |
| High Light: | steel stud roll forming machine,profile roll forming machine |
||
Technical Detail
| Roller station | 12Steps |
| Under Frame | 40mm-0.01~-0.03(with key-way) |
| Shaft diameter(Solid) | 40mm-0.01~-0.03(with key-way) |
|
Shaft material(Hard) |
High grade 45# steel,heated and quenched,cylindrical grinding, |
|
Roller material(Hard) |
Cr12,heated and Quenched,polishing |
| Bearing Type | Standard |
| Transmission Gear | Heat treatment |
| Motor Power | 5.5KW(Lichao,Shanghai) |
| Forming Speed | 0-20m/min(Non-Stop) |
| Main Structure | Welded Structural Steel |

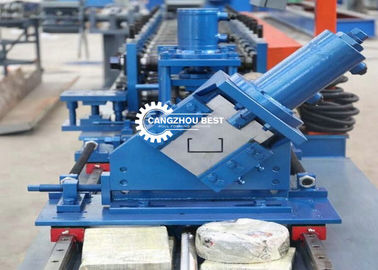

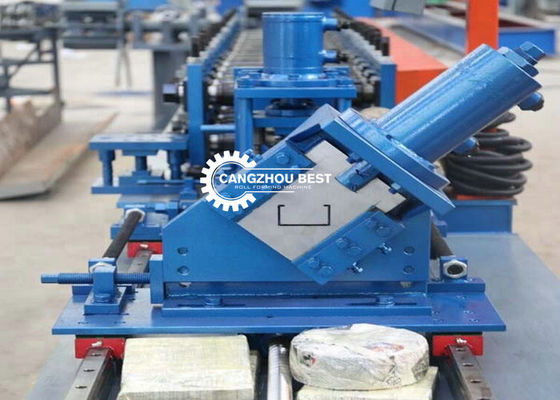

| Hydraulic Cutting | Tracking Length To Cut |
| Pump power | 5.5 KW |
| Hydraulic pressure | 20 Mpa |
| Voltage Standard | 380V/3Phases/50Hz |
| Cutting die | Cr12Mov, Quenched processed |
Service
In correct operation & maintaining, the machine is guaranteed for 18 months since leaving our
factory excludes the electric elements.
Installation:If installation is needed, we will dispatch a technician to the buyer’s factory abroad to assist
regulating the machine with charge. The buyer should assist the technician to get the Chinese technician's
visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the
buyer shall make the following preparation before arrival of technicians.
* Position the machine in the buyer’s factory.
* Prepare necessary electric wiring.
* Prepare material of trial running.
* Provide labors for assistance and installation during instalation.
