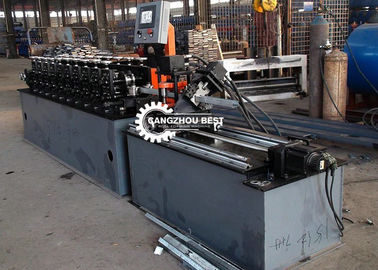

Product Details:
|
| Product Name: | Light Steel Keel Truss CD UD Profile Gypsum Board Stud&Track Roll Forming Machine | Punching Type: | Hydraulic |
|---|---|---|---|
| Control System: | PLC | Cutting Type: | Flying Saw |
| Warranty: | 2 Years | Lifetime: | 10years |
| High Light: | steel stud roll forming machine,profile roll forming machine |
||
Specifications
|
Manual Un-coiler
|
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
|
|
Leveling Device
|
◊ Ensure the material level and straight
◊ The width can be adjusted |
|
Auto Main Forming System
|
◊ Max Feeding width:1220 mm
◊ Product width: 1000 & 1020 mm ◊ Thickness of sheet: 0.2-1.0mm ◊ Motor Power: 5.5 kw forming system ◊ Roller material: C45 steel ◊ Diameter of shaft: Upper level 95 mm ◊ Base Frame: 360 H steel welded.. |
|

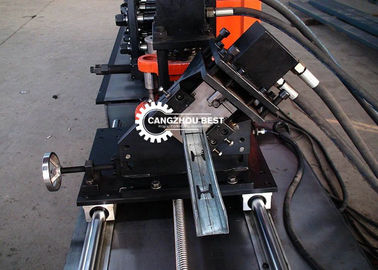

Hydraulic Cutting Device
|
◊ Cutting way: pause to cut.
◊ Oil pump station 1set. ◊ Hydraulic power: 4 kw hydraulic system. ◊ Blade Material: CR12 with heat treatment HRC60-62. |
|
Electrical System
|
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement) |
|
Run-out Table
|
◊ Frame: 8# steel groove welded
◊ Roller type. ◊ Quantity: 1 pc |

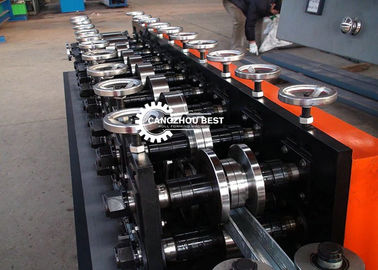

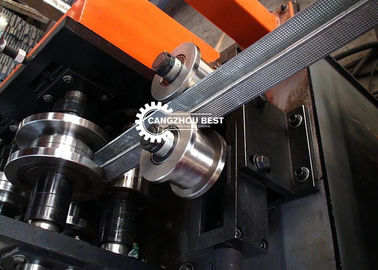

Rollers
High quality rollers will help to produce the beautiful
and high quality profile.That will satisfy your
customers.Using high qualiy thick shaft,
the strength is more durable.
The main body of the body without welding, all the use of cast steel, prevent the host body deformation.
PLC Control System
Usually we prodvide the Delta PLC control system,
but we can make that according to your need.
Payment Method
30% as deposit ,balance payment after inspection while before delivery.
Production Period
30 days after the 30% deposit.
Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
Features and Structure:
*Main-machine interface touch screen for easy operation
*Automatic material feeding system
*The machine can be used for different type of stud and track
*Automatic electric control system make production safety ang efficiency
*Solid shaft and high quality rollers make the machine working smoothly and endurable
*Low noise,low wasting ,energy saving and environmental
