Product Details:
|
| Product Name: | Fully Automatic Ceiling T Keel T Bar Ceiling Machine For Ceiling T Grid | Rolled Material: | Cold Rolled Steel Sheet |
|---|---|---|---|
| Rollers Number: | 16 Groups | Diameter Of Shaft: | 40 Mm |
| Bottom Frame: | 350 H Steel | Motor Power: | 5.5 Kw |
| Driven Type: | 1.0' Chain | Raw Material Thickness: | 0.2-0.8 Mm |
| High Light: | steel stud roll forming machine,profile roll forming machine |
||
Fully automatic ceiling T keel T bar ceiling machine for ceiling t grid
Our factory have been producing full automatic machinery for more than 20 years. As T-shaped keel mould production line is more and more popular in the market and the larbor cost is higher and higher in the society. Lesheng develop full automatic T-shaped keel mould production linewith hydraulic press punching and cutting. One or two people can contrl one production line. Suitalbe for small size, medium-sized and large enterprice
Working Flow of Roll Forming Machine
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting
Main Components
| Machine list | 3 ton passive de-coiler | 2 sets |
| Hydraulic punching device | 3 sets | |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Locking device for joints | 1 unit | |
| Out table | 2 units |
1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs
2.ROLL FORMING MACHINE
(1)Rolled Material: Cold Rolled Steel Sheet
(2)Material Thickness: 0.2-0.4mm
(3)Rollers: 16 Groups
(4)Material for Rollers: Cr12 steel
(5)Material for shaft: 45# steel(quenching and Harding and chroming)
(6) Hardness for Heat Treatment: HRC55 – 60
(7)Diameter of shaft: 40mm
(8)Frame panel thickness: 20mm
(9)Bottom frame: 36# H-section steel
(10)Motor Power: 5.5kw
(11)Driven type: Chain
5.CUT-OFF And PUNCHING DEVICE
(1)Material for Cut-Off Modular:Cr12 steel
(2)Hardness for Heat Treatment:HRC55 – 60
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(5)Material for punching die: Cr12steel
(4)Power: 5.5kw
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2)Length Error: ±1mm
(3)Language: English and Chinese
(4)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand
(3)Power:5.5kw+3kw
6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m
Profile of product

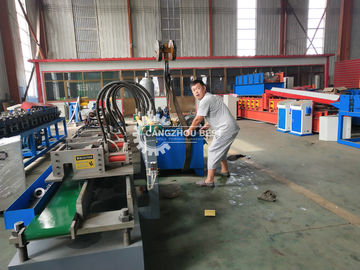

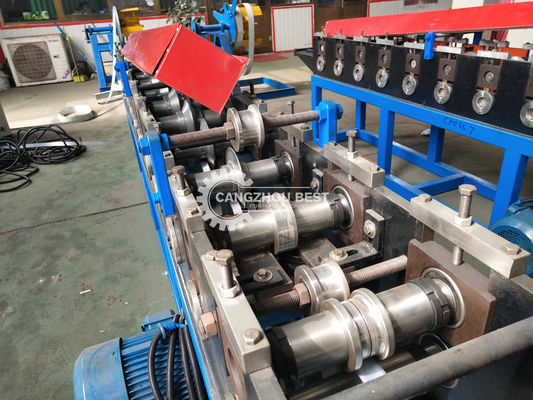

Machine Photo:
Why choose us ?
1. We are professional manufacturer, so we can offer better price and after-sale service and shorter delivery time.
2. We have strong design & technical ability, we can design and manufacture as customer's requirement.
3. Our factory has been approved ISO 9001 certificate.
4. We have much experience for installation and training experience overseas.
5. We have successfully exported our machines to more than 90 countries, We all get good feedback.
6. We provide a free two years warranty for all our items.
7. OEM brand.
