Product Details:
|
| Name: | Seamless Self Lock Roofing Sheet Panel Roll Forming Machine For Building | Weight: | 3.5tons |
|---|---|---|---|
| Shaft Material: | 75mm | Certification: | CE, BV, SGS |
| Thickness: | 0.3-0.8mm | Place Of Origin: | Hebei,China |
| Warranty: | 18month | Key Selling Points: | Automatic |
| Voltage: | 380v | ||
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

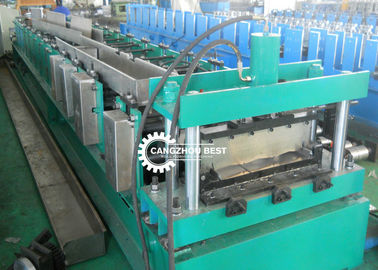

Seamless Self Lock Roofing Sheet Panel Roll Forming Machine For Building
1. Product Profile:
Standing seam snap lock self lock roofing sheet compared to stadition roof pane,no need seaming and cliper. Our ock self lock roofing sheet roll forming Machine can be used a workshop. The final product can be cut as per set length controller,and the length is automatically measured by encoder. When final product reached set length,machine will stop to cut the sheet automatically.Finish thhis action, the machine will run again continuously.
2. Details:
Components and Technical Specification

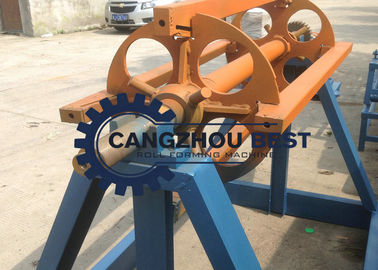

1) Manual Uncoiler
Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Loading capacity: 5T
Inner diameter: 500-508mm
2) Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3) Hydraulic System
Power: 4kw
Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

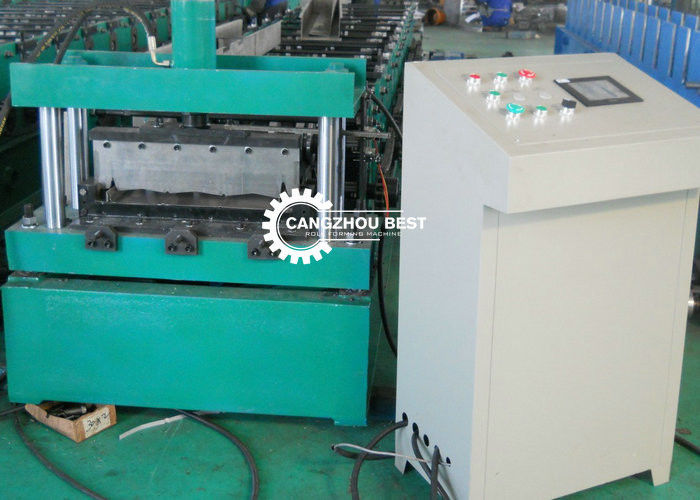

4) Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
PLC: Delta

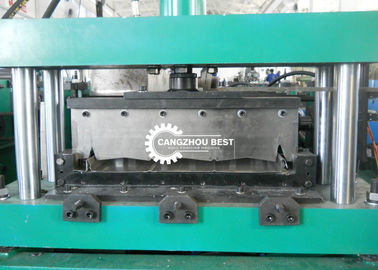

5) Cutting System:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
6) Output Table
It adopts welded steel and supported roller to transmit the products, which is used to collect the finished products.
| Product name | drywall roll former | |||
| NO. | Items | Parameters | Remark | |
| 1 | Suitable Material | Type | GI/PPGI/AL | |
| Thickness | 0.50-0.80mm | |||
| 2 |
Product Specifications |
Length | Any length | |
| Length Tolerance | ±2mm/6m | |||
| 3 | Working Speed | 25 m/min | Standard machine | |
| 4 | Control System | Mitsubishi/Siemens PLC transducer | Custom | |
| 5 | Total Power | 7KW | ||
| 6 | Total Weight | About 3.5T | Up to final design | |
3. Our Product:
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
4. Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation
