Hydraulic Steel Automatic Roller Shutter Door Roll Forming Machine Roll Up Slate Making

Hydraulic Steel Automatic Roller Shutter Door Roll Forming Machine Roll Up Slate Making
Hydraulic Steel Automatic Roller Shutter Door Roll Forming Machine Roll Up Slate Making Hydraulic Steel Automatic Roller Shutter Door Roll Forming Machine Roll Up Slate Making Hydraulic Steel Automatic Roller Shutter Door Roll Forming Machine Roll Up Slate Making Hydraulic Steel Automatic Roller Shutter Door Roll Forming Machine Roll Up Slate Making

Large Image :  Hydraulic Steel Automatic Roller Shutter Door Roll Forming Machine Roll Up Slate Making

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Hydraulic Steel Automatic Roller Shutter Door Roll Forming Machine Roll Up Slate Making

Description
Product Name: Hydraulic Steel Automatic Roller Door Roll Up Slate Making Roll Forming Machine Color: Blue Or As Your Request
Power: 5.5+3kw Machine Dimention: 5.5mx1mx1.4m
Warranty: 2years Driven System: Chain Or Gear Box
High Light:

cold roll forming machine

,

profile roll forming machine

Hydraulic Steel Automatic Roller Door Roll Up Slate Making Roll Forming Machine



Door Frame Roll Forming Machine, The finished product of High Quality Steel Door Frame Press Roll Forming Machine For Steel Door Production Line is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.



Work flow:

Decoiling--feeding---forming---cutting---finished product



Component



Manual un-coiler ( 3 Tons ) 1 unit
Main Roll Forming Machine 1 unit
Electrical System with PLC Control 1 unit
Hydraulic station 1 unit
Out table 2 unit


Techincal description:
1).Automatic inner tight decoiler

Dimensions: 1700mm*1000mm*800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 420mm—510mm
Mode of expand and fight: inner expand and fight by manual
Way of feeding: manual

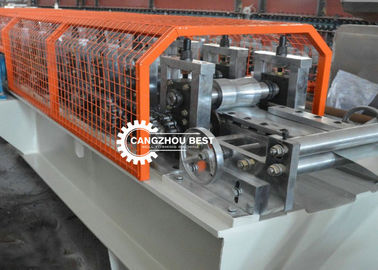

2). Main forming machine

Profile steel thickness 1.5mm carbon steel and stainless steel
Main motor power: 11KW, AC motor, side motor to save space ( Brand: Guomao which made in China )
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase

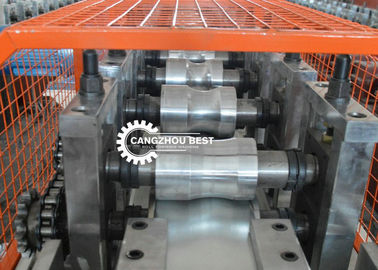

Roll station:16stations +1 station of Revising Station
Roller material:SAE1045, hardness and chrome plated surface
Shaft diameter: diameter 76mm material: SAE1045
Machine roll forming speed: 15-20 m/min
Transmission: Gear Box + Coupling

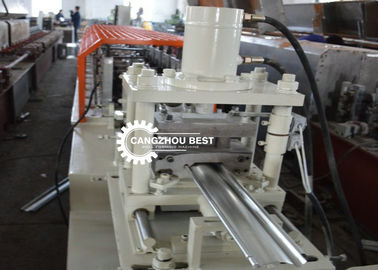

3).Hydraulic cutter

Machine adopt hydraulic track cutting
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The roll forming part NON-STOP when cutting.
Material of blade: CR12with heat treatment
Length measuring: Automatic length measuring
Tolerance of length: +/- 1.5mm
Drive by servo motor
Power of servo: 3KW
Brand of servo: Yaskawa



4).The electrical control system

Programmable setting of profile length and quantity
Automatic stopping of the equipment after completion of the cutting programme.
Operating system language: English and Chinese
Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
PLC brand: Panasonic
Frequency converter brand: Yaskawa, quantity: 1
Touch screen: Taiwan Weinview



5).Hydraulic system

Hydraulic power: 5.5kW
Working pressure: 12Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46 # hydraulic oil
Color: Blue ( or base on customer request )



Our Service

1). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

2). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30working days after receipt of deposit from the buyer. This machine is in stock now

3). Service: We could send the technician to your country to fix the machine if you need.

4). Warranty: 12 months During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.





Packaging Details:

Main machine is nude, the computer control box is packed

with wooden frame.



Main machine is nude in the container, the computer

control box is packed with wooden packaging.

Delivery Detail: 35 days after deposite
