Product Details:
|
| Product Name: | Metal Roof Tile Ridge Cap Roll Forming Machine For Construction | Machine Speed: | 8-12m/min |
|---|---|---|---|
| Machine Power: | 3kw+3kw | Lifetime: | More Than 10 Years |
| Warranty: | 18month | Control System: | PLC |
| High Light: | ridge cap machine,steel roof tile forming machine |
||
Metal Roof Tile Ridge Cap Roll Forming Machine for construction
advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Pressing and Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Parameter
| Material |
| Material Thickness(&):0.4-0.7mm |
| Applicable material:Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils,yield strength 245Mpa or 550Mpa |
| Machine Components |
| 1)Manual Decoiler: one set |
| Max. feeding width: 500mm, coil ID range 470mm±30mm |
|
Capacity: Max. 3Ton |
| 2) Cold Rolling Mills: |
|
Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ; |
| Motor Driving,Gear chain transmission, 18 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling) |
| Main Motor=4KW , Frequency speed control |
| Forming speed approx.12-15m/min |
| 3)Hydraulic Cutting device |
| hydraulic motor: 3.7KW, Hydraulic pressure range: 0-16Mpa |
| Cutting tool material: Cr12, Heat treatment |
| 4)PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo) |
| Control the quantity and cutting length automatically |
| Combined with: PLC, Inverter, Touch Screen, Encoder, etc |
| Cut-to-length tolerance≤±1mm |
| Control Voltage 24V |
| 5) Exit Rack Un-powered, three units |
| Working conditions | |
| 1.working size | 15m x 2m x 4m |
| 2.Power supply | 6kw |
| 3.Frequency | 50-60HZ |
| 4.Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7.Lift device | 3-5t forklift or crane |
Terms
Payment: 30% T/T prepaid and balance should be paid before shipping.
Delivery time:40 days after receiving advance payment.
Guarantee period: 12months
Installation and training:if buyer visit our factory and check the machine, we will teach you how to install and use the machine.
And also train your workers/technician face to face.
We will send you video to teach you to install and operate.
If you need our technician abroad to your country, please arrange board and lodging and other necessary things.

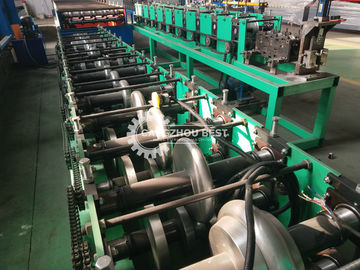

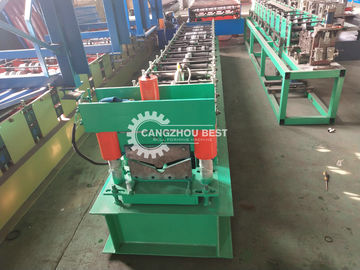

Photos
