Product Details:
|
| Place Of Origin: | Hebei,China | Certification: | CE ISO SGS |
|---|---|---|---|
| Name: | Customized Steel Omege Furring Channel Roll Forming Machine For Ceiling | Voltage: | 380V 50Hz Or Customized |
| Use: | Roof | Production Capacity: | 8-12m/min |
| Power(W): | 3+3kw | Warranty: | 2years |
| Key Selling Points: | Easy To Operate | Way Of Drive: | Chain Driven |
| High Light: | steel stud roll forming machine,profile roll forming machine |
||

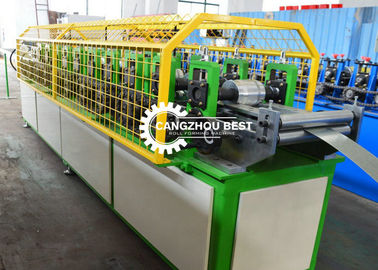

Customized Steel Omege Furring Channel Roll Forming Machine for Ceiling
1. What is omega roll forming machine?
The Stud and Track Roll Forming Machine, as known as Hat Shape Roll Forming Machine, Main Channel Roll Forming Machine, Omega Furring Channel Roll Forming Machine, Wall angle Roll Forming Machine, Ceiling Roll Forming Machine Light Steel Keel, Roll Forming Machine etc. can produce studs, tracks and many other shapes derived form Shape C. If you need to more efficiency then we recommend you adpot the Flying shear with No-stop system . The Max. whole line speed can be reach at 40m/min. If you want to produce more than one profile in one machine, we recomend you the double rows forming machine and triple rows forming machine to save space and economy.
2. Machine Details:

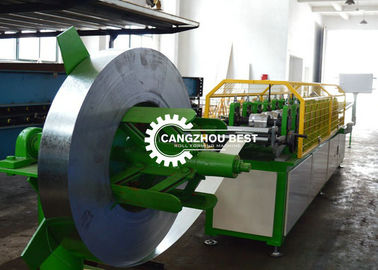

1) Tons decoiler

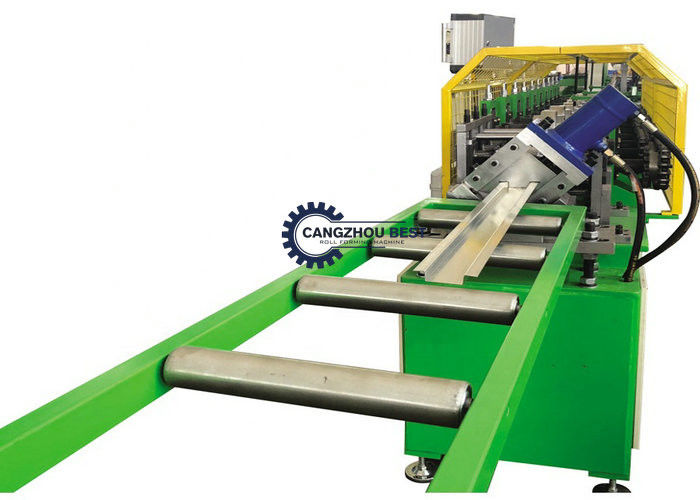

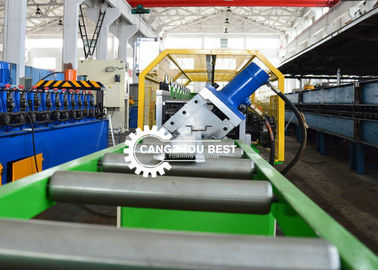

2) Hydraulic stop cutting
Cutting way: Hydraulic cut.
Oil pump station: 1set.
Hydraulic power: 4kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance: +-1.5mm
3) Control box system
Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
4) Finished tables
It adopts welded steel and supported roller to transmit the products.
Size:4000*1350*1000mm
3. Machine Maintenance
1. Before using the machine the operator must fill 32# or 46# mechanical oil.
2. The surface of the rollers should be kept clean. When the plate is rolled, the dirty object must not be carried into the machine.
3. Before using the new machines, the lubricating oil must be added to the chain and once every six months.
4. After using the machine, the oil must be sprayed to the surface of the rollers. After the construction site is exposed to rain or when the air humidity is high and condensate water on the surface of the rollers. Please make sure to dry the rollers with a dry cloth and apply anti-rust oil.
4. Our Service:
| Good quality | We have a professional designer and experienced engineer team |
| Good service | we provide the technical support for whole life of our machines |
| Guarantee period | within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts |
| Easy operation | All machine cotrolling by PLC computer controlling systerm |
| Elegant apperance | Protect the machine from rust and the painted colour can be customized |
| Reasonable price | We offer the best price in our industry |
5. Please inquiry me, learn more details.
Contact Person: Mr. Arno Hao
Tel: +8618717894416
