CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting

CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting
CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting

Large Image :  CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting

Product Details:
Brand Name: CHBEST
Model Number: YX-840/800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD8500-25500/set
Packaging Details: 40GP/20GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting

Description
Place Of Origin: China Certification: ISO CE SGS BV
Name: Roof Use Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting Production Capacity: 8-12m/min
Material Thickness: 0.3-0.8mm Material Of Shafts: 45# Steel
Main Motor Power: 5.5kw Cutter Material: Cr12 Mould Steel
Cutting Type: Hydraulic Voltage: 380V 50HZ 3 Phase
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Roof Use Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting



Machine Description:

Specification of aluminum roofing sheet roll forming machine double layle metal tile making machine in chinaAll the technical parameters for aluminum roofing sheet roll forming machine double layle metal tile making machine in china are also made as per the cutomers' requirements.



Technical Parameter:
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width:828/900/840
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: first layer is 9 steps,second level is 9 steps,third level 11 steps.
(9) Roller material: 45aluminum roofing sheet roll forming machine double layle metal tile making machine in china forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16m
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 60Hz or as your requirement
(14) 0veral sized:about 6500mm*1600mm*1500mm

Working flow
Manual decoiler-Roll forming machine-PLC control-Hydraulic system -Post cut-Stacking



Components of machine:

Decoiler 1set (5MT capacity)
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table 1set


Main Features:

1. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

2. High-solid forming stand guarantees the goods and uniform high quality of final productd

3. Precise forming, The operation automatically minimizes the tolerance of cutting length

4. A stylish and attractive design, giving the apperance of a traditional roof tile.

5.The raw material can be in different color, with elegant and noble looking.



Our Service:

Terms of payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.

Delivery: 10 days after receipt of advance payment.

Service: we sent technician to your country to fix the machine.

The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 200 USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay the shipping fee.



FAQ

1. You are the manuafacturer or trading company ?

A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.

2. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?

A: Within the 18 month period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.



Photos:

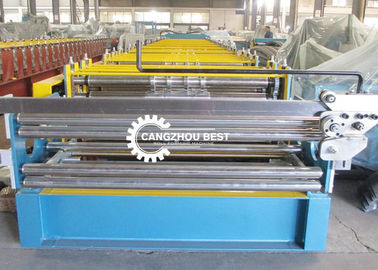

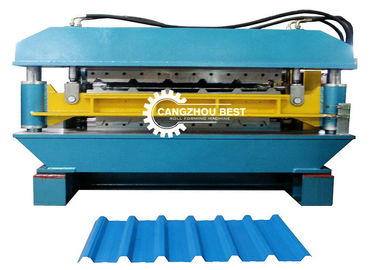

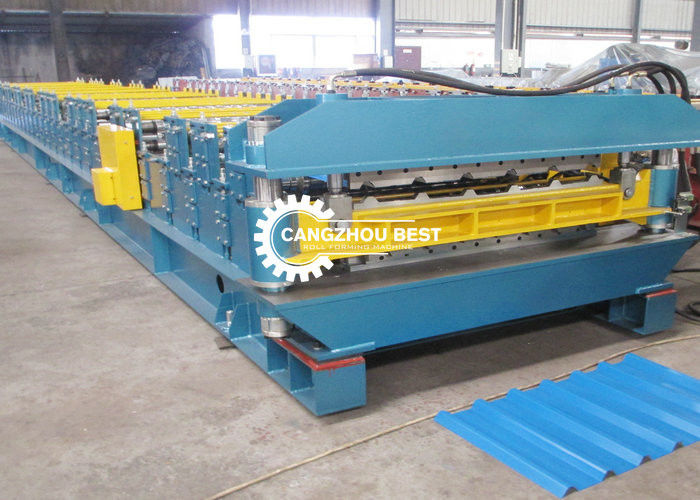

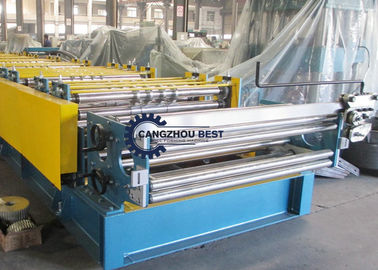

CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting 0

CE Double Layer Profile Roofing Sheet Roll Forming Machine 5.5KW Cutting 1
