Product Details:
|
| Name: | Aluminium Profile Roofing Panel Roll Forming Machine For Building Sheet | Place Of OriginPlace Of Origin: | Hebei, China |
|---|---|---|---|
| Warranty: | 18 Month | Cutting Blade Material: | Cr12 |
| Tile Type: | Colored Steel | Bottom Frame: | 350H Steel |
| Control System: | PLC | Roller Material: | 45# Steel |
| Speed: | 8-12m/min | Key Selling Points: | Easy To Operate |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

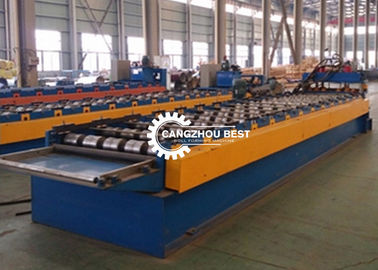

Aluminium Profile Roofing Panel Roll Forming Machine For Building Sheet
1. Main Advantages:
1. Use 450H Beam as machine frame.
2. can use more than 10 year without any problem.
3. Use first brand PLC,trandsducer,Touch Screen.
4. 2 years Warranty.
2. Parameters:
3. Machine details
Usage: It is used to support the steel coil and uncoil it The steel coil is expansion by hand.
Loading capacity: 5T
Inner diameter: 450-508mm
Wall Tiles Making Machine
Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

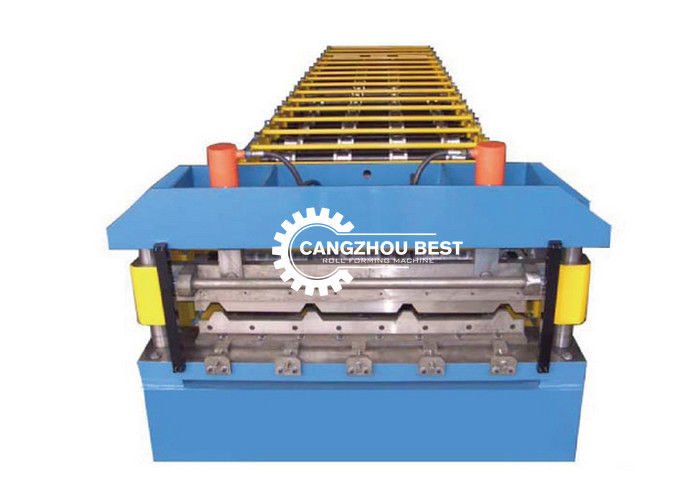

3) Main Roll Forming Machine:

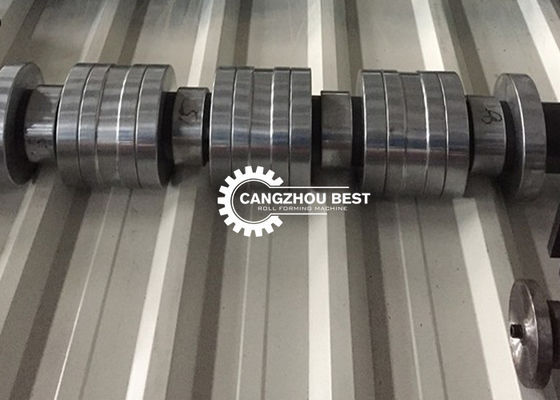

It is designed according to the customers’ profile drawing. It adopts motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.Power:4kw Hydraulic oil: 40#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.With reducer combination, long life, high precision
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
Roofing Tile Making Equipments
It adopts Delta/Siemens PLC to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.Touching screen
4. Aftersales service:
This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians travelling abroad, including 100usd/day labor cost ,round-trip flight ticket and accommodation there.
5. Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
We can produce according to your requirements.
