Product Details:
|
| Product Name: | Steel Trapezodial Profile Corrugated Roof Sheet Making Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

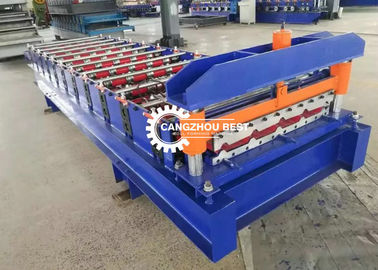

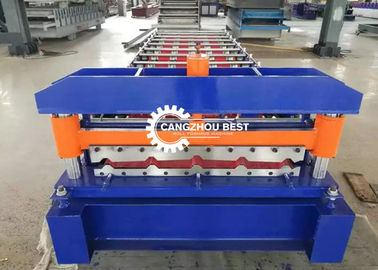

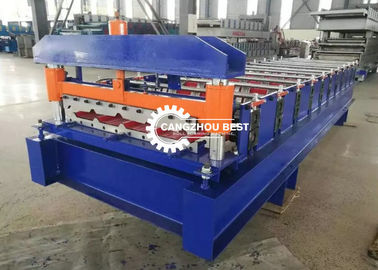

Steel Trapezodial Profile Corrugated Roof Sheet Making Roll Forming Machine
Specifications
| Part details | Item Name | Specification |
| Manual uncoiler | carrying capacity | 5 tons |
| Stype | Manual | |
| Raw coil | Coil material | steel |
| Coil thickness | 0.3-0.8 mm | |
| Machine body | Roller station | 15 station |
| Roller material | 45# steel with 0.05mm chrome | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Shaft diameter | 75 mm | |
| Machine weight | About 6.5 tons | |
| Machine size | 7.5*1.5*1.5 m | |
| Speed | 8-12 m/min | |
| Cutter | Operate | Hydraulic cutting |
| Blade material | Cr12 | |
| Power | Operate | Chain transmission |
| Chain size | 1 inch chain | |
| Control system | PLC brand | Taiwan delta |
| Motor power | 7.5 kw | |
| Hydraulic pump power | 4 kw | |
| Voltage | 380V 50Hz 3phase | |
| Machine color | As ur need | |
| Machine language | Chinese and English |
Components
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | Automatic cutting | set | 1 |
| 6 | Output table | set |
1 |
1) Decoiler
a.Inner diameter:450-550mm
b.Outer diameter:1250mm
c.Max weight:5T

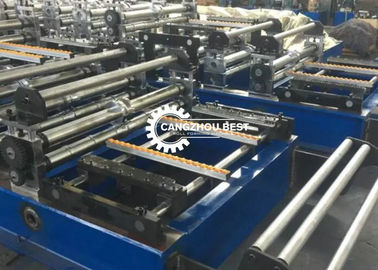

2) Main forming machine
a.Roller material:45#steel, Roller diameter:80mm
b.Forming station:13 stations
c.Speed:2-4m/min
d.Motor:5.5kw
e.Voltage:380v,50hz,3ph
How to order:
1: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2: How to visit our company
Fly to Beijing airport: By high speed train From Beijing south station to Cangzhou west station (1 hour),
then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou west station(4.5 hours),then we can pick up you.
If any questions, you can call me mobile phone at any times
3: If you want to get more pictures or videos of the machines, I can send them to you by Email or Skype.
After Sales Service
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.
