Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD14500-66500/set
Packaging Details: 40GP/20GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

100-600mm Adjustable Bridge Cable Tray Machine / Production Line Low Noise

Description
Name: 100-600mm Adjustable Bridge Cable Tray Roll Forming Machine Production Line Certification: CE, BV, SGS
Warranty: 2 Years Control Type: PLC
Voltage: 380V Production Capacity:: 8-15m/min
Place Of Origin: Hebei,China Weight: 10t
RHydraulic Oil: 46# Hydraulic Oil Production Capacity: 8-12m/min
High Light:

cable tray production line

,

steel profile roll forming machine



100-600mm Adjustable Bridge Cable Tray Roll Forming Machine Production Line



1. What is the Application of cable tray machine?

Galvanized Steel cable tray machine is a kind of equipment for making cable tray by various material. In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe. For Canzgou Best cable tray roll forming machine is a kind of machine for making cable tray by roll forming principle.



2. Parameters:

de-coiler

Parameter: width of material: 225-1020mm thickness: 1-2mm;
Inner diameter of coil: 508mm;inner expansion range: 480-520 mm;
The maximal of Diameter: 1500mm; The Maximal of loading: ≤5T
Motor power: 5.5kw frequency change control
Press material type: pneumatic press material
Feeding speed: 0-15m/min, adjustable

Leveling machine of fully automatic cable tray machine

A: working roller: nine rollers type leveling machine

B: Feature of structure: after the quenching and tempering, chrome-plating processing, the rigidity, surface roughness of the roller etc. are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel. Between the leveler and the feeding device, there is optical sensor, sends out the feedback signal to the control system, the control system sends out the instruction to the frequency conversion motor to change speed, Achieves the uninterrupted level goal.

servo feeding machine

A: function: material feeding

b. Feature: Uses the servo motor-driven .Multistage type feeding: May input 10 group of different feeding lengths. The liquid crystal touching screen demonstrated is advantageous for the change, establishes various technical parameters. The auto-induction start system and the punch press linkage (control punch press start).

Punching press of

Model of punching press: JF21-120B

Roll forming part

Forming station: 14sets
Forming variety: bridge frame
The diameter of the roller axis: 85mm

Hydraulic cutting

Cutting type: hydraulic cutting
Blade type: close type die cavity cutter
Hydraulic power:5.5kw
Material of blade: Cr12, quench treatment, hardness HRC56-58
Quantity: 9 (depend on customer request)

Run-out table

Structure: roller type with no power
Electric control system
A: Full line is controlled by PLC control system,touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc..
B: Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency was stopped ensure the safe of the equipment and operator.



3. Specifications:

Standard Specifications



* Non standard specification are available upon customer's requirements.

No.

Width

(mm)

Height

(mm)

Thickness

(mm)

Standard Length

(mm)

1 50 13, 15, 20, 25,50, 75, 100 1.5 - 3.0 3000
2 75 13, 15, 20, 25,50, 75, 100 1.5 - 3.0
3 100 13, 15, 20, 25,50, 75, 100 1.5 - 3.0
4 150 13, 15, 20, 25,50, 75, 100 1.5 - 3.0
5 200 13, 15, 20, 25,50, 75, 100 1.5 - 3.0
6 225 13, 15, 20, 25,50, 75, 100 1.5 - 3.0
7 300 13, 15, 20, 25,50, 75, 100 1.5 - 3.0
8 400 13, 15, 20, 25,50, 75, 100 1.5 - 3.0
9 450 13, 15, 20, 25,50, 75, 100 1.5 - 3.0
10 500 13, 15, 20, 25,50, 75, 100,150 1.5 - 3.0
11 600 13, 15, 20, 25,50, 75, 100,150,200 1.5 - 3.0
12 700 13, 15, 20, 25,50, 75, 100,150,200 1.5 - 3.0
13 750 13, 15, 20, 25,50, 75, 100,150,200 1.5 - 3.0
14 800 13, 15, 20, 25,50, 75, 100,150,200 1.5 - 3.0
15 900 13, 15, 20, 25,50, 75, 100,150,200 1.5 - 3.0

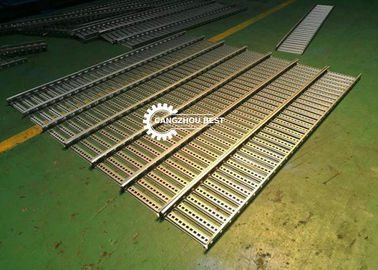

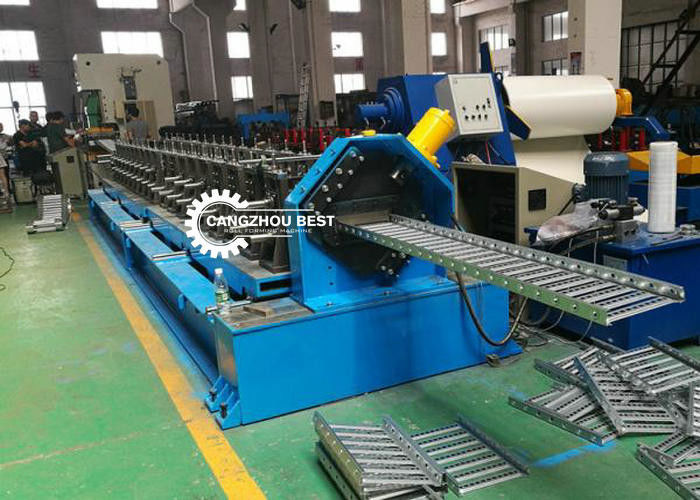

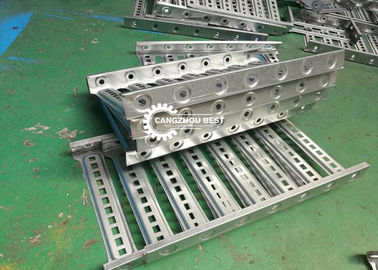

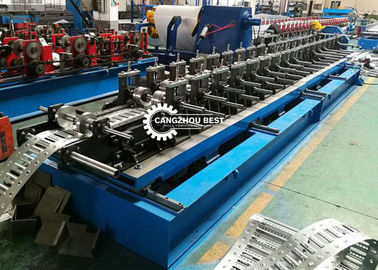

4. Photos:

100-600mm Adjustable Bridge Cable Tray Machine / Production Line Low Noise 0

100-600mm Adjustable Bridge Cable Tray Machine / Production Line Low Noise 1
