Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line

Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line

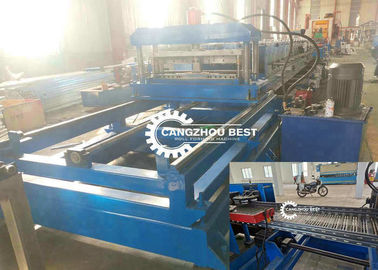

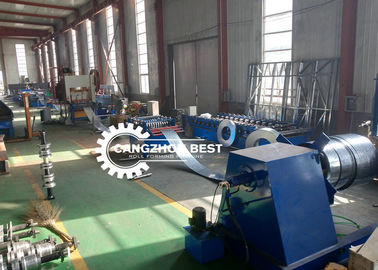

Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line

Large Image :  Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD14500-66500/set
Packaging Details: 40GP/20GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line

Description
Name: Automatic Change Perforated Cable Tray Roll Forming Making Machine Production Line Condition: New
Cutting Type: Non-stop Cutting PLC Brand: Delta
Usage: Building Production Capacity:: 8-15m/min
Cutting Blade: Cr12 Key Selling Points: Long Service Life
Shaft Diameter: 80mm Decolier: Automatic
High Light:

cable tray production line

,

steel profile roll forming machine



Automatic Change Perforated Cable Tray Roll Forming Making Machine Production Line



1. What is the Application of cable tray machine?

Product Application
The cable tray is a special type of perforated cable tray electrical which provides good performance in commercial and light industrial electrical applications. Cable tray galvanized refers perforated cable tray whose surface is fabricated by using quality raw material Pre-galvanized
The tray offers a 45 mm cable laying depth, with widths 150 mm, 300 mm, 450 mm, 600 mm and standard lengths of 3 m.
Flexible to install, its good performance combined with a visually appealing profile in the electrical industry. For general use indoor, with a clean looking finish, the tray is offered in pre-galvanized steel, however,if use outdoor that need the extra corrosion protection,hot dip galvanized after fabrication cable trays are available.
As a reconized cable tray roll forming machine manufacturer, BOSJ also can provide a full range of cable tray accessories to enable fast on site fabrication of tees, risers, bends and crosses.

Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution



2. Parameters:

1) Decoiler

Decoiler Type : manual decoiler

weight capacity of decoiler : 5.0T





2) Feeding and Leveling Device

It used for making the material flat before feeding into the roll forming machine



3) Punching and cutting Device

It used for punching the suitable holes and cut to target length of products.

Punching Type: Hydraulic Punching

Cutting type: Hydraulic cutting

Cutting material: Cr12

Hydraulic power: 5.5KW

Hydraulic Pressure: 16Mpa



4) Rolling Forming System

main motor type : phase asynchronous motor(manufacturer: shanghai nanyang)

motor power: 15KW

speed of forming : 10-14.8m/min

material of roller : GCr15 24 groups rollers

material of main shaft : 40Cr(The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming)

diameter of main shaft: ø80mm



5) PLC Control System

Control the quantity &punching length& cutting length automatically

Voltage: 380V, 3 Phase 50Hz

Size of PLC Control Board: 700mm(L)x1000mm(H)x300mm(W)

PLC manufacturer: Japan Panasonic

Solenoid valve

Oil hydraulic cylinder

Bearing

Oil pipeline

Touch Screen

Encoder



6) Product support frame

The length of product support frame : 6m



3. Specifications:

Raw material
material spec colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.8-1.5 mm
Side rail height 50-60mm
length Max3000mm
Width 50-500mm
Production capacity 8-15m/min
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 80mm or as your requirement
main frame

350 H steel

forming steps

24rows

hydraulic station power

15 KW

hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
hydraulic oil 40# hydraulic oil

After sale-services

Delivery time

30 workdays after receiving the deposit

Payments 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment





4. Equipment overview:

1. Double cantilever gear drives, the producing width of machine is adjust continually, it is possible to change the width and height.
2. Rolling stations is 24 steps ,the main machine consists of AC motor,reducer,high precision liner rail, transmission box on left and right, horizontal adjustment system and rolling moulds. The machine base and transmission adopts welding structure , with hardness treatment, the material of roller is 45# steel.
3. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.



5. What we have?

Our Cable Trays are manufactured Fully Automatic Punching & Cuting Machines accroding to your required specifications.We can choice high quality hot dip or electrolytic galvanazing sheet steel according to your requirements.For More Detail of Our Cable Carying Systems , Please do not hesitate to contact with us directly.simple technique process, make cable ladder with high quaulity, high speed, cable tray, cable ladder for fixing cables.Cantilever type cable tray production line,Cantilever type cable tray production line manufacturer,Cable Tray Production Line,cable tray machine line,Ladder Type Cable Tray,ladder type big span cable tray,Cantilever type cable tray production line,Ventilated Type Cable Tray Unventilated Type Cable Tray Wire Mesh Cable Tray Cable tray machine Cable tray roll forming machine groove cable tray roll forming machine Channel Type Cable Tray Production Line Cable Tray Forming Machine.



6. Photos:

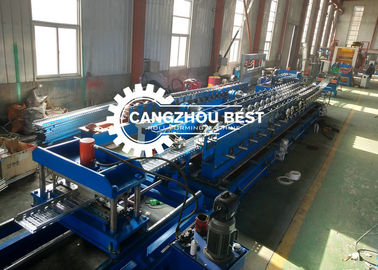

Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line 0

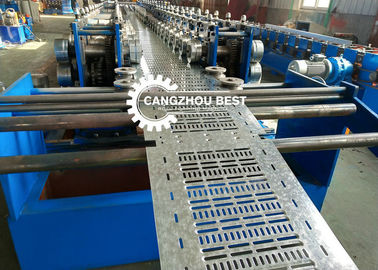

Automatic Change Perforated Cable Tray Roll Forming Machine / Production Line 1
