Product Details:
|
| Name: | Aluminum IBR Metal Roofing Pofile Steel Sheet Roll Forming Machine With PPGI/GI Material | Color: | As Yourrequire |
|---|---|---|---|
| Speed: | 8-12m/min | Control System: | PLC |
| Shaft Material: | 45# Steel | Warranty: | 2 Year |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
Aluminum IBR Metal Roofing Pofile Steel Sheet Roll Forming Machine With PPGI/GI Material
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Pressing die---------------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Decoiler
Max. Width: 1250 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs
Type: Manual Or Hydraulic (Optional)

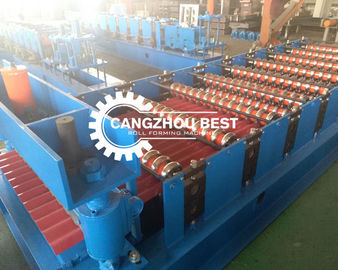

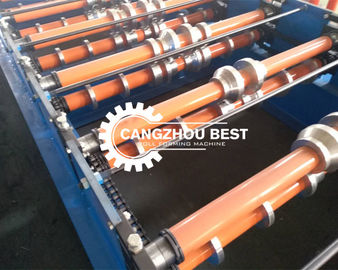

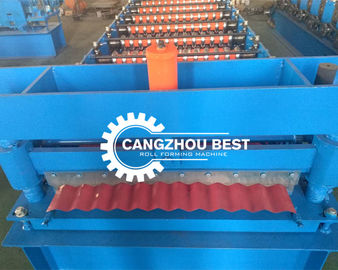

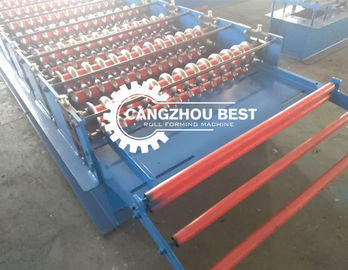

Roll Forming Machine
Roll forming machine
Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;
Shaft: manufactured with 45# high grade steel by CNC machine tools;
Supporting frame: steel wallboard to guide the forming station bearing basement;
NO. of roller Stations:up 18groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 70mm
Frame panel thickness:14mm
Bottom frame: 36# H-section steel
Cutter device
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Power supply: hydraulic station;
Frame: welding steel frame;
Stroke switch: non-contact photoelectric switch;
Cutting after forming: cut the sheet after roll forming to required length;
Length measuring: automatic length measuring.
Working Flow
Decoiler------feeding -------roll forming------cut to length-----output table
Packing Detall
| (1) |
40 GP container ; main machine naked and fastened with iron wire in the container. |
| (2) |
All Components Fixed by steel wire with Container. |
| (3) |
electrics devices be packed with wooden box.for Standard export packing |
| (4) |
rollers were painted with oil and packed with plastic film. |
Main Features
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical
guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer, has a professional engineer for technical guidance. Engineers engaged in cold bending mechanical equipment design for more than 20years, has a wealth of design concept. Can provide users with a special type of design and manufacture. At the same time to sell equipment for installation, guidance, production, commissioning one-stop service.
After-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
