Auto Cable Tray Roll Forming Machine For Professional Design Profiles

Description
Name: Professional Design Profiles Auto Cable Tray Roll Forming Machine Machinery Supplier Brand Name: CHBEST
Material: Galvanzied PLC Brand: Delta
Width: 100-600 Delivery Time: 30-60 Days
Driven Type: Chain Key Selling Points: Long Service Life
Shaft Diameter: 80mm Thickness: 1.5mm
High Light:

cable tray production line

,

steel profile roll forming machine



Professional Design Profiles Auto Cable Tray Roll Forming Machine Machinery Supplier



1. What is cable tray machine?

Product ApplicationThe cable tray roll forming machine is capable of making different sizes of cable trays through replacing punching moulds.The cable trays produced by this roll forming production line are extensively used in factories and other building because of their accurate robustness. With full and special experience, we can customize cable tray forming machines or cable roll forming production lines according to customers’ profile drawing and specifications. Other high quality equipments, including metal roll forming machine are also provided as you require.



The perforated cable tray roll forming machine successfully integrated hydraulic punching device or high speed press machine for radiation holes on cable tray. Also the telescope shaft is available to rapid size changeover without toll change. Pre-cutting device equipped for cut off finished products.



Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution



2. Parameters:

de-coiler

Parameter: width of material: 225-1020mm thickness: 1-2mm;
Inner diameter of coil: 508mm;inner expansion range: 480-520 mm;
The maximal of Diameter: 1500mm; The Maximal of loading: ≤5T
Motor power: 5.5kw frequency change control
Press material type: pneumatic press material
Feeding speed: 0-15m/min, adjustable

Leveling machine

A: working roller: nine rollers type leveling machine
B: Feature of structure: after the quenching and tempering, chrome-plating processing, the rigidity, surface roughness of the roller etc. are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel. Between the leveler and the feeding device, there is optical sensor, sends out the feedback signal to the control system, the control system sends out the instruction to the frequency conversion motor to change speed, Achieves the uninterrupted level goal.

Punching press

Model of punching press: JF21-120B

Roll forming part

Forming station: 14sets
Forming variety: bridge frame
The diameter of the roller axis: 85mm

Hydraulic cutting

Cutting type: hydraulic cutting
Blade type: close type die cavity cutter
Hydraulic power:5.5kw
Material of blade: Cr12, quench treatment, hardness HRC56-58
Quantity: 9 (depend on customer request)

Run-out table

Structure: roller type with no power
Electric control system
A: Full line is controlled by PLC control system,touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc..
B: Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency was stopped ensure the safe of the equipment and operator.






3. Specifications:

Automatic inner tight decoiler
◊ coil inner diameter 450mm-550mm
◊ maximum width of coiling600mm
◊ maximum weight of loading 2500kg
Main forming machine
◊ a. number of forming steps 11rows
◊ material of shaft 45# steel . Outer diameter 60mm
◊ main motor power: 5.5kw
◊ The speed of forming: 0-50m/min
Hydraulic cutter
◊ material of blade:Cr12 mould steel with quenched treatment 60-62
◊ cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)
The electrical control system
◊ The Brand of display: DELTA
◊ The main computer (PLC): DELTA DVP14
Hydraulic system
◊ Adopting advanced hydraulic system of Tai Wan
◊ Power:3kw
The equipments coating , package
◊ the coating adopt international general shade-guide
◊ The package :simple waterproof package





4. Our Service:

We have professional team to make different kinds of roll forming machines for our customers, from designing, processing, assembling, debugging,delivery.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use thenmachine, and also train your workers or technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



5. What we have?

Our Cable Trays are manufactured Fully Automatic Punching & Cuting Machines accroding to your required specifications.We can choice high quality hot dip or electrolytic galvanazing sheet steel according to your requirements.For More Detail of Our Cable Carying Systems , Please do not hesitate to contact with us directly.simple technique process, make cable ladder with high quaulity, high speed, cable tray, cable ladder for fixing cables.Cantilever type cable tray production line,Cantilever type cable tray production line manufacturer,Cable Tray Production Line,cable tray machine line,Ladder Type Cable Tray,ladder type big span cable tray,Cantilever type cable tray production line,Ventilated Type Cable Tray Unventilated Type Cable Tray Wire Mesh Cable Tray Cable tray machine Cable tray roll forming machine groove cable tray roll forming machine Channel Type Cable Tray Production Line Cable Tray Forming Machine.



6. Photos:

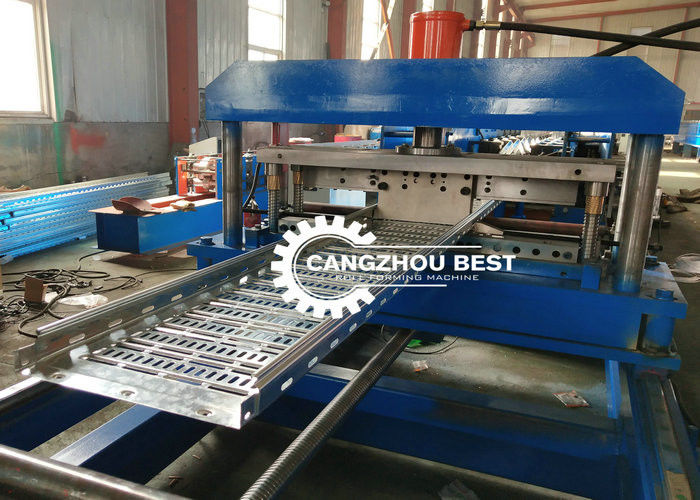

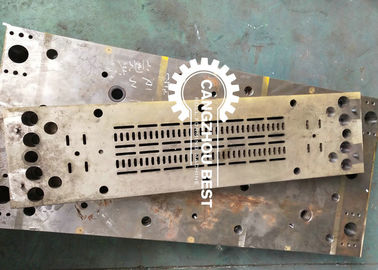

Auto Cable Tray Roll Forming Machine For Professional Design Profiles 0

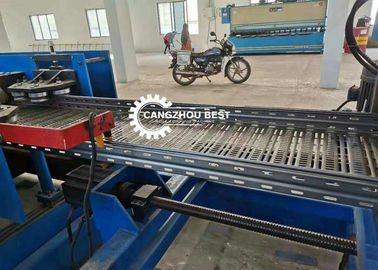

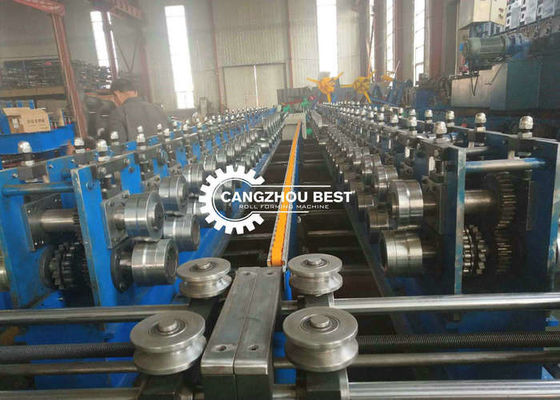

Auto Cable Tray Roll Forming Machine For Professional Design Profiles 1
