Product Details:
|
| Product Name: | High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Singal Layer Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Hydraulic Power: | 3KW |
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| Life Time: | More Than 10 Years | ||
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

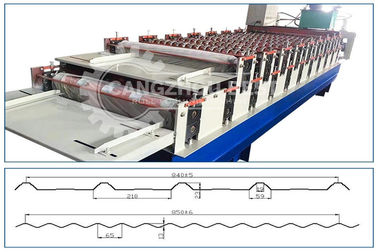

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Singal layer roll forming machine
machine components
| Name | NO. | Unit |

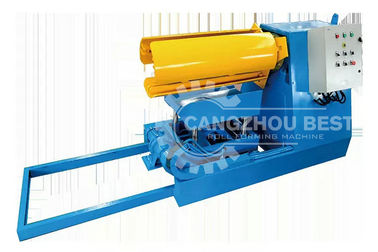

| 1.De-coiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Cutting device | 1 | set |
| 4.PLC control box | 1 | set |
| 5.Hydraulic pump station | 1 | set |
| 6.Production support table | 1 | set |
Quick Details
Warranty: 1 YEAR
Type: Tile-forming machine
Production capacity: 2m/min
Certification: CE/ISO9001
Applicable industriy: Building material shops,manufacting plant,construction
Condition: New
Tile type: Colored glaze steel
Use: Roof
Place of origin: Hebei,China
Brand name: FORWORD
Voltage : 380V 50HZ 1350MM
Dimension(L*W*H): 6000*1300*1350MM
Weight: 6.8t
After-Sales Service: Online support,free spare parts,fired installation,commis
key Selling Points: Long Service Life
Raw Material: GI or PPGI
Production Name: Europen glazed roof tile cold roll forming machine
Roller stations: 15 stations
Under frame: H-bean
Roller material: 45#steel with hard chromed 0.05mm
Shaft material: 45#steel with procession
Shaft diameter: 70MM solid
Cutting blade material: Cr12Mov
Control system: Taiwan or japan famous brand
| Product description | |
| suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
| thickness of coil |
0.3-0.8mm |
| coil width | 1000-1200-1250mm |
| material of main frame | 400H steel |
| roller | high grade 45# steel,quenched and tempered treatment,hard chrome plated 0.05--0.07mm |
| thickness of middle plate | 16mm,45#steel plate |
| forming roller station | 15 rows |
| dirven type | by chain(1.0inch),link bearing model 6210 |
| power of main motor | 5.5kw,servo motor |
| sidewall connection bar | 25mm,zinc plated |
| forming speed | about 12-18m/min |
| hydraulic pump station | 5.5kw,40#hedraulic oil |
| plc | delta |
| material of razor blades | cr12,quenching 58-62℃ |
| frequency converter | it has the advantage of slowing down before cutting.to ensure the length accuracy ±1mm,fai better than industrial standard ±3mm |
| switch | CHNT |
| Frequency changer | SAJ |
Different Type and Different Color
