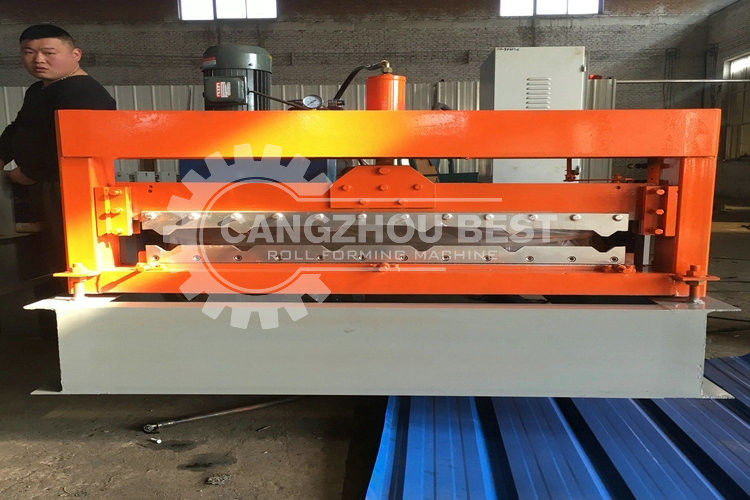

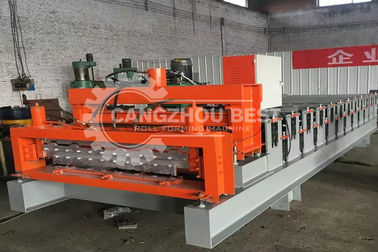

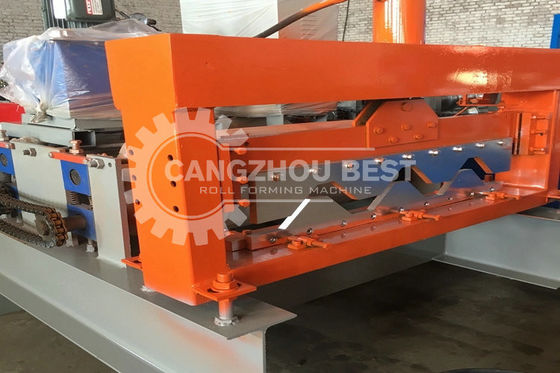

Blue Steel Double Layer Roll Forming Machine For Construction Building Material

Large Image : Blue Steel Double Layer Roll Forming Machine For Construction Building Material

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE/ISO
Model Number:	BE-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD6000-10000
Packaging Details:	Standard export packing : 1. 1*40 GP container ; main machine naked and fastened with iron wire in the container. 2.rollers were painted with oil and packed with plastic film. 3.electrics devices be packed with wooden box.for Standard export packing.
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/months

Contact Now

Blue Steel Double Layer Roll Forming Machine For Construction Building Material

Description

Name:	Blue Steel Roofing Sheets Roof Sheet Double Layer Roll Forming Machine	Color:	As Your Require
Material:	PPGI GI	Shaft:	70mm
Voltage:	380V/50HZ/3PHASE	Warranty:	2 Year
High Light:	roofing sheet making machine , metal sheet roof roll forming machine

Blue Steel Roofing Sheets Roof Sheet Double Layer Roll Forming Machine

Technical Parameters:

NO	Item	Description
1	Product' sizes	According to customer's request
2	Processing material	GI
3	Processing thickness	0.4-2.0mm
4	Main motor power	7.5kw
5	Power of hydraulic station	5.5kw
6	Quantity of roller stations	18
7	Production speed	Approximate 15-25 m/min
8	Diameter of shafts	Φ80mm
9	Material of rollers	Cr12 steel with vacuum heat treatment HRC57°-60°
10	Material of shafts	45# steel quenched and tempered
11	Material of cutting blades	Cr12 mould steel with quenched treatment
12	Size of machine	Approximate 7500mm(L)×160mm(W)×1800mm(H)
13	Theoretical weight	Approximate 7000KGS
14	Driven method	Chain transmission
15	Brand of PLC	Yaskawa
16	Cut mode	Hydraulic profile cutting
17	Power supply	380V 50HZ 3Phases or at buyer's requirement

Double layer tile press 840/900 new double layer design, one machine dual-use, small area, convenient transportation, saving color steel coil occupation, saving cost.

1. Electric control system: the whole machine is controlled by industrial computer PLC

2. Working speed: 8-12mm/min

3, tile machine roll material: 45# steel surface plating hard chromium, hardness HR55°-57°

4. The big frame of the equipment is all welded by 300# i-steel. The thickness of the middle plate is 14mm 5. Transmission mode: one inch main chain drives one inch chain drive (bearing Harbin)

6. Middle roller axis: upper layer 900-70mm, lower layer 840-70mm (all solid shafts) 7. Equipment includes: two sets of color roll shelf (or optional)8, the machine with welding guide table
9, hydraulic station pressure: 10-12mpa 10. Voltage: 380V, 50Hz
