High Speed Corrugated Roof Roll Forming Machine / Roof Tile Making Machine

High Speed Corrugated Roof Roll Forming Machine / Roof Tile Making Machine
High Speed Corrugated Roof Roll Forming Machine / Roof Tile Making Machine High Speed Corrugated Roof Roll Forming Machine / Roof Tile Making Machine High Speed Corrugated Roof Roll Forming Machine / Roof Tile Making Machine

Large Image :  High Speed Corrugated Roof Roll Forming Machine / Roof Tile Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE/ISO
Model Number: BE-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD6000-10000
Packaging Details: Standard export packing : 1. 1*40 GP container ; main machine naked and fastened with iron wire in the container. 2.rollers were painted with oil and packed with plastic film. 3.electrics devices be packed with wooden box.for Standard export packing.
Delivery Time: 35days
Payment Terms: L/C, T/T
Supply Ability: 15sets/month

High Speed Corrugated Roof Roll Forming Machine / Roof Tile Making Machine

Description
Name: Color Steel Glazed Tile And Roof Sheet Double Layer Profile Sheet Roll Forming Machine Machine Color: As Request
Payment Type: T/T LC Speed: 8-12m/min
Roller Material: 45#steel Shaft Material: 45#steel
Power: 8.5kw
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Hot Sale Corrugated Roof Roll Forming Machine/Roof Tile Making Machine/Construction Building Material.

Product Description



Automatic courrugated roofing&wall roll forming machine



1
Forming size

Length
Width
Height



Ordinary tile
5000-5500mm
1400-2300mm
1300-1500mm



Glazed tile
5000-7500mm
1400-1500mmt
1300-1500mm



2
Raw material
Suitable material
Coloerd steel coil,Galvanized coil,Aluminum coil
Feeding width
1000mm(Can be customized)
Thickness
0.3-0.8mm
3
Effective width
Ordinary
740-1250mm
Can be customized
4
Rollers
Material
45#Steel plated with chrome
Diameter
11rows(Determined by the required equipment)
5
Shafts
Material
45#Steel plated with chrome
  11rows(Determined by the required equipment
6
Cutting blade
Hydraulic cutting,Cr12 with quenching treatment
7
Capacity
8000-40000mm/min
8
Weight
3-6T(Determined by the required equipment)
9 Control system
PLC control system with transducer inside
10
Machine body
H-shape steel:300-450mm
11
Middle plate
14-20mm(Determined by the required equipment)
12
Chain
1-2Inches
13 Shear blade heat treatment



HRC58-60 degree



14 Length precision



±2mm



15
Power of hydraulic station
3kw(Determined by the required equipment)



Main feature

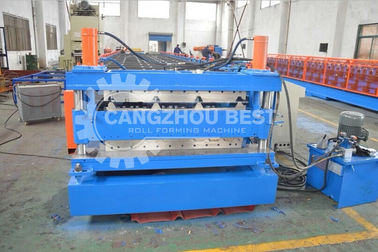

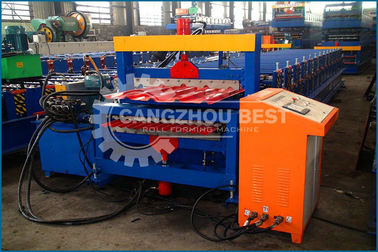

Double layer metal roofing sheet roll forming machine is perfectly combined two different-profile machines together, this can save the space and also is easy to operate. The two profiles are chose according to customer needs. The machine consists of feeding device, main roll forming, cutting system, hydraulic station, computer PLC control, high precision counter and so on.

Technical parameters



Manual decoiler



Dimensions: 1700mm*1000mm*800mm

Width of feeding: 1250mm

Capability: 5 Tons

Inter diameter: 480-570mm

Maximal out diameter: 1500mm

Mode of expand &fight: inner expand &fight by manual

Way of feeding: manual



Feeding device

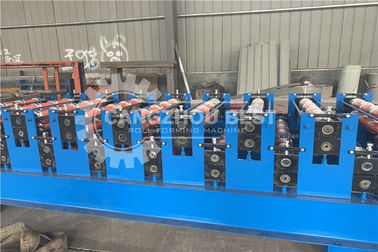

Main roll forming



Rolling Speed: 10-15m/min

Upper Roller Stations: 18Stations

Bottom Roller Stations: 18Stations

Roller Material: 45#steel

Shaft Material: 45#steel

Shaft DIA: D76mm

Main Motor Power: 5.5kw

Side Plate: Wall plate

Way of Drive: By chain



Hydraulic cutting



Hydraulic Cutting Power: 5.5kw

Material of Blade: Cr12Mov

Tolerance: +1.5mm



Out table



ointed by 60mm*40mm tube

One out table with two support roller Two sets.



Hydraulic station



Hydraulic power: 5.5kW

Working pressure: 12Mpa adjustable

Solenoid valve: 1 group

Hydraulic oil: 46# hydraulic oil

Color: Blue (or base on customer request)



Control cabinet

Programmable setting of profile length and quantity

Automatic stopping of the equipment after completion of the cutting programme.

Operating system language: English and Chinese

PLC brand: Panasonic
