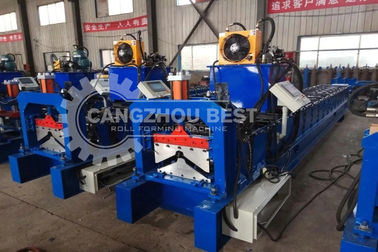

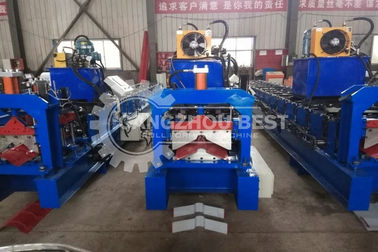

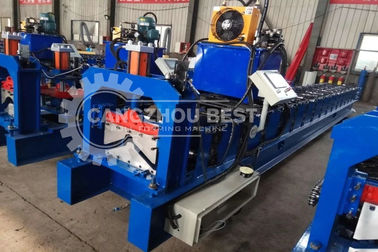

Product Details:
|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| Weight: | About 3 Tons | Certification: | CE/ISO9001 |
| Warranty: | 18Month | Color: | Blue Or As Your Request |
| High Light: | ridge cap forming machine,steel roof tile forming machine |
||
| No | Item | Parameter | Note | |
| 1 |
Suitable Material |
Type | Metal Sheet | Customized Specs Acceptable |
| Customized Profile | ||||
| Thickness | 0.3-0.6mm | |||
| Hardness | 195-350MPA | |||
| 2 |
Product Specs |
Cover width | Customized Profile | |
| Length | Any length | |||
| 3 |
Power Specs |
Type | 380V/3PH/50HZ | Up to Practical Profile |
|
Main Motor |
3KW | |||
| Hydraulic | 5.5KW | |||
| 4 |
Machine Specs |
Transmission | Chain and Sprocket | Gearbox and Cardan Acceptable |
| Structure | Column Block Or Wall Plate | |||
| Shafter | No.45 steel tempered | |||
| Rollers | No.45 steel chrome coated | Cr12 or other acceptable | ||
| Cutting Blade | Cr12 quenched | |||

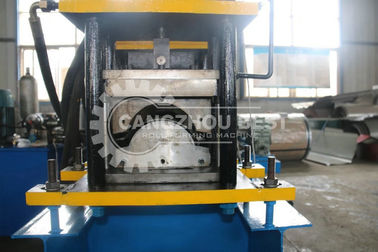

| Press Mould | Cr12 quenched | |||
| Punch Mould | Cr12 quenched | |||
| 5 |
Working Capacity |
Forming Speed | 8-10m/min for standard solution | Higher Speed Solution Available |
| Working Speed | Up to Length-set Cutting | |||
| 6 |
Manual Decoiler (Optional) |
Type | Manual | |
| Max. Capacity | 5 T | |||
| Suitable coil ID | 450-550mm | |||
| Max Coil width | 1000mm | |||
| 7 | Forming Stand | 8-48 | Up to Practical Profile | |
| 8 | Forming Shaft Diameter | 55-120mm | Up to Practical Profile | |
| 9 | Type of Cutting | Length-set cutting after roll formed | Pre-cutting acceptable | |
| 10 | Control System | Mitsubishi/Pansonic/Delta PLC | ||
| 11 | Output Supporter | 1 Pcs Simple Supporter | Auto Stacker Optional | |
Technical Details
| uncoiler | ||
| Loading capacity | 5T |  |
| Inner diameter | 470-530mm | |
| Steel coil width |
914, 1000, 1220, 1250 mm. According to your actual drawing. |
|
| Working speed |
0-15m/min adjustable |
|
| feeding table | ||
| It is used to control the width and position of the steel sheet. | |
|
|
he sheet is guided into the machine with the correct position to make sure the panel is neat and parallel. |
||
| mainframe | ||
| Material | 350 H steel | |
| Feature | more table, no shaking | |
| forming rollers | ||
| Material | High grade 45# steel. | |
| Roller stations |
11-16 stations. According to your actual drawing |
|
| cutting system | ||
| Material of blade |
Cr12MOV much better than normal Cr12 material |
|
| Hydraulic power | 3 KW | |
| control cabinet | ||
| Suitable power |
380V, 50Hz, 3phase or according to your need. |
|
| Feature |
The whole process is automatically controlled by the computer. In this way, you can ensure accuracy and easy work. |
|
