Product Details:
|
| Name: | Galvanized Steel Wire Mesh Perforated Cable Tray Roll Forming Machine | Color: | As Your Require |
|---|---|---|---|
| Shaft Material: | 45# Steel | Control System: | PLC |
| Thickness: | 0.7-2.5mm | Warranty: | 2 Year |
| High Light: | cable tray production line,steel profile roll forming machine |
||
Galvanized Steel Wire Mesh Perforated Cable Tray Roll Forming Machine
Decoiler------guiding------leveling---punching-------roll forming--------cut to length-----output table
automatic roll forming machine to make cable tray components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
output table-----------------------1set
automatic roll forming machine to make cable tray Techical description:
1)Cable Tray Roll Forming Machine Manufacturing Supplier Decoiler
Weight capacity of decoiler : 5.0T
Inner diameter:≤508mm
Outer diameter:≤3000mm
Decoiler
| Width | 500mm |
| Inner Diameter | 450-550mm |
| Outter Diameter | 1500mm |
| Capacity | 5000kg |
| Type | Manual Or Hydraulic |

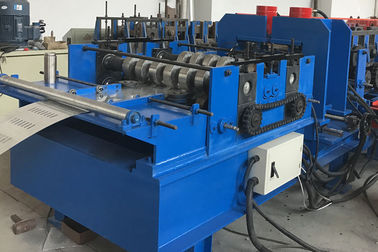

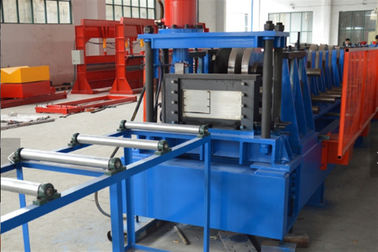

Roll Forming Machine
(1)Rolled Material: Galvanized steel 1.5-3.0mm (2)Material Thickness: 1-3mm

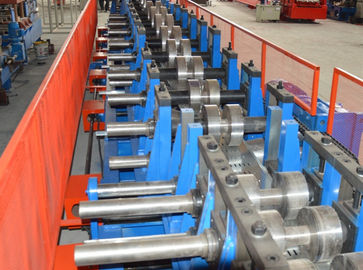

(3)Rollers: 15Groups
(4)Material for Rollers: GCr15 steel after treatment
(5) Hardness for Heat Treatment: HRC55 – 60
(6)Frame panel thickness: 20mm
(7)Bottom frame: 40# H-section steel
(8)Motor Power: 18.5kw
(9)Rolling Speed: 15m / min(don’t include punching)
(10)Driven type: double sides double row 1＂Chain

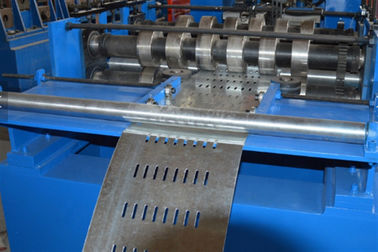

Punching And Cutting Device
| Item | Parameter detail |
| Frame processing | the whole levelling surface is made by drilling machine |
| Mould material | Cr12mov |
| Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
| Hole size | According to your request |
| Hole number | According to your request |
| Pressure | 20Mpa |
Cutting device
| Type | Pre-cutting |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
| Working | Hydraulic type |
Packing Detall
| (1) |
40 GP container ; main machine naked and fastened with iron wire in the container. |
| (2) |
rollers were painted with oil and packed with plastic film. |
| (3) |
electrics devices be packed with wooden box |
| (4) |
All Components Fixed by steel wire with Container. |
Our service
Re-sale Service :
1. Send you invitation letter, if you wanna visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by whatsapp or Telephone.
