Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel

Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel
Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel

Large Image :  Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD18000-26000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel

Description
Collecting Type: Simple Unpowered Collecting Drive Type: Chain Drive
Feature: High Efficiency Advantage: Easy To Maintenance
Cutting Type: Hydraulic Cutting Transport Package: Steel Wire
High Light:

downpipe roll forming machine

,

pipe roll forming machine

Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater



This metal gutter roll forming machine machinery is used in manufacturing steel rain gutters, and its specific dimension is made at customers' requirements. The main components of this device are decoiler, roll former, cutting device, control cabinet, and products collecting table, etc. Strips undergoes uncoiling, feeding, roll forming and then coming out the formed products. The machine is designed logically and possesses high quality forming. Controlled by PLC, this gutter roll forming machine is quite convenient to operate and debug. Roll forming part of this machine is covered by protection mesh to ensure the safety production. Keywords: roll forming machine gutter downpipe roll forming machine

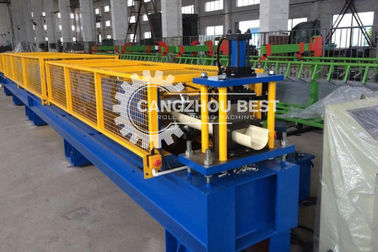

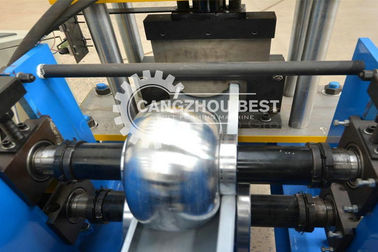

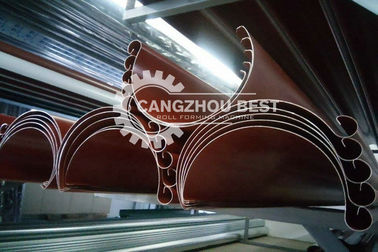

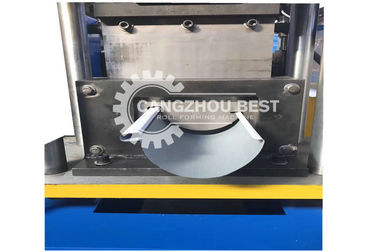

Detailed Images

Custom Water Rain Down Pipe Roll Forming Machine Chain Drive CE Certificated



Main Components of Downspout Machine





Manual Decoiler 1 Unit
Pinch Feeding 1 Unit
Main Roll Forming 1 Unit
Hydraulic Cutting (machine stop to cut) 1 Unit
Hydraulic Station 1 Unit
Electrical Control Board 1 Unit
Run out Support Table 1 Unit
Elbow Machine 1 Unit





Technical Parameters of Downspout Roll Former





Material Spec PPGI, Aluminum
Thickness of Coil Sheet 0.4-0.6mm
Forming Motor Power 7.5KW
Forming Speed 0-15m/min (excluding cutting time)
Working Stations About 20 Roller Stands
Roller Material High grade 45#, polished and coated with 0.05mm Chrome Surface.
Shaft Diameter 75mm
Material of Axis High grade 45# steel
Voltage 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
Hydraulic Station Power 3KW
Hydraulic Pressure 10-12Mpa



Hydraulic Uncoiler

1. Type: Hydraulic uncoiler, hydraulic system for expansion coil-inner-hole with 4 palms, electric feeding
2. Link-connect expanding system
3. Pump Power: 1.5KW
4. Load capacity: 3 Ton
5. Coil Inner Diameter: 451-530mm
5. Coil Outer Diameter: Max. 1500mm

Roll Forming Machine

1. Feeding section with guide;
2. Gear/Sprocket driving;
3. Rollers Station: 18 steps
4. Material of Rollers: 45# steel, CNC lathes, hard Chrome Coated with 0.05mm
5. Diameter of Shaft: ф70mm, 45# steel
6. Main motor: 5.5 KW, Frequency speed control
7. Speed of Roll Forming: 8-12m/min

Hydraulic Cutting Device

1. Cutting Type: Hydraulic Cutting, roll forming part stops when cutting the formed products
2. Cutting Mold: 1 group
3. Material Of Cutting Mold: Cr12mov HRC 60-62
4. Cutting Length And Quantity: Clients Can Set The Length and Quantity on the PLC Touch Screen
5. Cutting Pressure: 12-16Mpa
6. Hydraulic Station Power: 4KW
7. Tolerance Of Cutting Length: +/-2mm

PLC Control System

1. The worker input the length and quantity of the product through touch screen
2. Computer Control System: Panasonic PLC
3. Encoder: Omron Brand
4. Frenquency Converter: Yaskawa
5. Touch Screen: MCSG
6. Controlled System Power: Overload Protection
7. Pressure Of Hydraulic Station: ≧12Mpa
8. Current: 380V Direct Current, 50Hz, 3 Phase

Collection Table

1. Type: Simple Un-powered
2. Collect the product after cutting, high quality steel welded

Packing & Delivery

1. A 40 feet container is required
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film
3. Spare parts and some small parts packed in plastic tooling box
4. All Components Fixed by steel wire with Container.

Quality Control

1. We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
4. Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.



Main Specifications



  • Main motor power: 7.5Kw
  • Number of forming station: About 20
  • Forming speed of rainspout forming machine: 6-12m/min
  • Voltage: 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
  • Dimension of machine: About 12000mm*1100mm*1200mm
  • Machine wight: about 12 Ton
  • Material of Axis: High grade 45# steel
  • Diameter of Axis: φ75mm
  • Material of Roller: High grade 45#, polished and coated with 0.05mm Chrome Surface.
  • Materical of Machine Frame: A3 Steel, thickness 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • A). Main Conponents of Downpipe Former


    Decoiler ---------------------------------------------- 1 Unit

    Feeding guide -------------------------------------- 1 Unit

    main roll forming machine ------------------------ 1 Unit

    Hydraulic Cutting device -------------------------- 1 Unit

    Hydraulic Station ----------------------------------- 1 Unit

    PLC computer control ----------------------------- 1 Unit

    Output table ----------------------------------------- 1 Unit

    Elbow machine -------------------------------------- 1 Unit



    B). Working Flow of Downpipe Former


    Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard--> Tighten Device -> Cut to length --> Out-put Table --> Curving machine



    C). Main Specification of Downpipe Former



  • Main motor power: 7.5Kw
  • Number of roll stand: About 20 stands
  • Forming speed: 6-12m/min
  • Voltage: 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
  • Dimension of machine: About 12000mm*1100mm*1200mm
  • Machine wight: about 12 Ton
  • Material of Axis: High grade 45# steel
  • Diameter of Axis: φ75mm
  • Material of Roller: High grade 45#, polished and coated with 0.05mm Chrome Surface.
  • Materical of Machine Frame: A3 Steel, thickness 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  •

    D). Applications of Downpipe Former



    Rainwater downpipe, Downspout, Rainspout, Water pipe, Drainpipe



    E). Competitive Advantages



    1. High Quality

    2. Reasonable Price

    3. Good Aftersale Service

    4. 1 Year Warranty

    5. More Than 10 Years Experience

    6. Factory Visit



    F). More Machine Pictures

  • Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel 1Round Down Spout Roll Forming Machine For Aluminum Or Galvanized Steel 2
