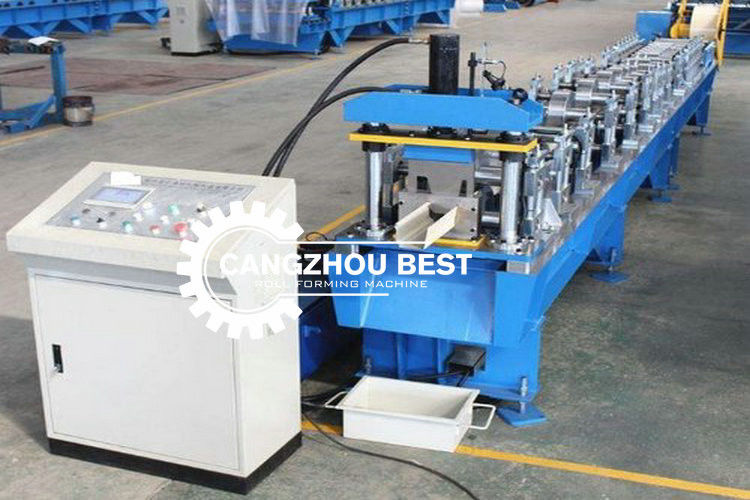

Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission

Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission
Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission
Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission

Large Image :  Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD12000-18000
Packaging Details: a.need one 40ft container b.Fit for ocean shipping c.Main body of roll forming machine fixed to container by 8mm diameter steel wire; Rollers and shaft is covered with anti-rust oil; Spare parts in carton box
Delivery Time: 30 work days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission

Description
Certification: CE/ISO9001 Condition: New
Voltage: 380V 50Hz 3phases After-sales Service Provided: Engineers Available To Service Machinery Overseas
Control System: PLC(imported Brand) Warranty: 2 Years
Highlight:

cold roll forming machine

,

profile roll forming machine

Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission
This advanced rainwater valley gutter roll forming machine features robust chain transmission and comprehensive automation for efficient steel construction applications.
Key Features
  • 5-ton decoiler with main roll forming machine
  • Computer-controlled operation with PLC display
  • Easy operation with steady, reliable performance
  • Durable, maintenance-free construction
  • Hydraulic cutting system for smooth, quiet operation
  • Long operating life with minimal noise
Technical Specifications
Usage/Application Steel construction
Material Galvanized or mild steel
Cutting Type Hydraulic
Number Of Forming Stations 19
Automation Grade Automatic
Job Thickness 1.5 - 6mm
Power 22KW
Voltage 380v/50HZ, 3Phase or customized
Capacity 8 - 15m/min
Warranty 12 months
System Control PLC
OEM Service Yes
Brand BEST Machinery
Minimum Order Quantity 15 Set
Detailed Machine Specifications
  • Suitable Plate Material: thickness 1.5-6.0mm, Galvanized steel or mild steel
  • Working Speed: 8-15 meters/min
  • Forming Steps: 19 stations, driven by gear boxes
  • Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
  • Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
  • Driven System: Chain Driven 1.5 inches 20A double chain with longer shafts
  • Main Power with Reducer: 22KW
  • Cutting: Hydraulic Cutting
  • Material of Cutting Knife: Cr12Mov, Quench HRC58-62
  • Hydraulic Station Power: 4KW
  • Control System: Industry computer-PLC
  • PLC: Panasonic, Japan (English and Chinese Language)
  • Touch Screen: Panasonic Japan
  • Encoder: Omron, Japan
Working Process
Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission 0
Technical Parameters
Name Half Round Steel Rain Water Gutter Cold Roll Forming Machine
Roller Stations 15
Raw Material GI
Forming Thickness 0.5-0.9mm
Large Frame 350mm H-Beam
Diameter of Roller Φ50mm
Roller Material Steel 45#
Voltage 380V 50HZ 3 phases or customized
Power 5.5kw
Cutting System Hydraulic cutting (noise-free and smooth cut)
Material of Cutting Cr12
Control System PLC brand: Panasonic
Production Capacity 8-15m/min
Warranty 1 year with lifetime technical support and overseas service
Machine Components
Component Description Quantity
1 Manual or Hydraulic Decoiler 1 set
2 Feeding Device 1 set
3 Main Forming Machine 1 set
4 Hydraulic Cutting Device 1 set
5 Hydraulic Station 1 set
6 PLC Control System 1 set
7 Run Out Table 1 set
Product Images

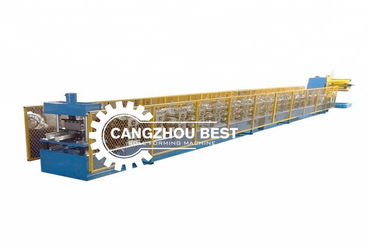

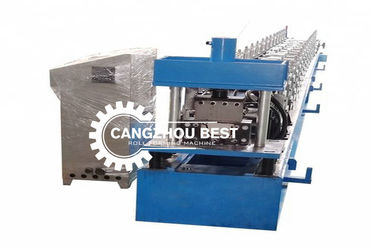

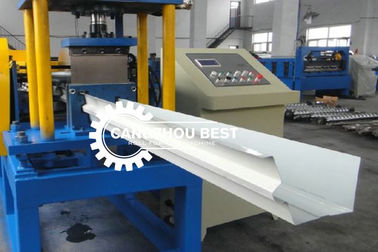

Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission 1 Steel Rain Water Gutter Equipment Cold Roll Forming Machine With Chain Transmission 2
Frequently Asked Questions
Does one machine can only produce one size?
Not exactly, it depends on which profile the customer wants to produce.
Do you have after-sales technical support?
Yes, we provide comprehensive technical support and have skilled technicians available for overseas maintenance in customers' workshops when needed.
Are you a trading company or factory?
We are the manufacturer and handle our own export operations.
How long does it take to manufacture the machine?
High precision roll forming machines typically require 40 working days. Rush orders can be completed in less than one month.
Do you provide customized solutions?
Yes, we design machines according to customer requirements and profile drawings, offering professional engineering solutions.
May we visit your factory?
Yes, we warmly welcome visitors to our factory in Cangzhou, Hebei, China at any time.
How to visit your factory?
By plane to Cangzhou, Hebei, China.
What's the warranty period?
12 months warranty period starting from successful installation and commissioning at the buyer's site.
Can you arrange shipment?
Yes, we provide complete shipment arrangements including door-to-door service for our customers.
