Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine

Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine
Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine

Large Image :  Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY94-130
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $15200-$28500/set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets/month

Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine

Description
Product Name: Alumiumum Rainwater Roofing Gutter Seamless Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 8-12m/min Machine Dimention: 9mx1.4mx1.4m
Machine Power: 5.5kw+3kw Driven System: Chain Or Gear Box
High Light:

cold roll forming machine

,

profile roll forming machine

Alumiumum Rainwater Roofing Gutter Seamless Roll Forming Machine

Downspout roll forming machine Newly strong type gear box drive gutter roll forming machine, this is our new machine for Libanon customer, the material thickness 1.8-2.0mm, and the product very popular in Europe, South Africa, Zambia, Brazil, America, Iraq, Uruguay, chile etc.The machine totol need 22 roller station , can use color steel plate, galvinazed steel plate, aluminum zinc plate, thickness range is up to 2.0mm.
Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm

roll forming


Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 16-22 stations(according to the profiles)

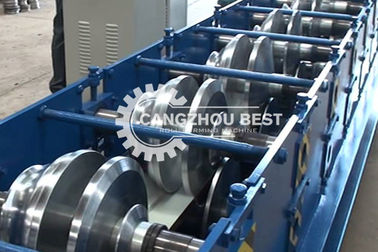

Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 5.5kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

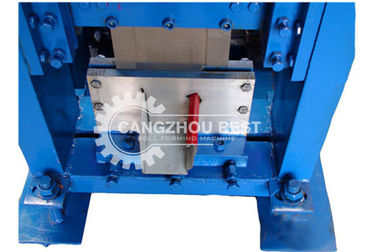

Cutting


Type

Mould type


Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker


Type

Manual


 Auto(option)



Length 2 pieces 6m or 12m

PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan




Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Other Product

Roof sheet machine, roof tile machine, ridge cap machine, double layer machine, c z purlin machine, highway guardrail machine, cable tray machine, water tube machine,decking sheet machine, roller shutter door machine, door frame machine, ceiling drywll machine and so on.



Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine 0Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine 1Alumiumum Rainwater Roofing Seamless Gutter Roll Forming Machine 2
