Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine

Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine
Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine
Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine

Large Image :  Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD18000--25000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets//month
Contact Now

Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine

Description
Voltage: 380V 50Hz 3 Phases Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas Tile Type: Colored Steel
Certification: CE/ISO9001 Warranty: 1 Year
Highlight:

ridge cap forming machine

,

steel roof tile forming machine

PLC Control Steel Stud Roll Forming Machine For Making Aluminum Metal Ridge Cap

What does this machine include?

1). 3T manual decoiler
2). Feeding →roll forming→pressing→hydraulic cutting
3). Output table
4). Control panel
5). Hydraulic station
6). Spare part list



Parameter of ridge cap machine

Profile steel thickness between 0.3mm and 0.7mm
Main motor power 4kw, AC motor, side motor to save space
Machine Voltage, Frequency, Phase 380 V, 50 Hz, 3Phase
Roll station 14 station of rollers
Roller material SAE1045, chrome plated surface
Shaft diameter 70mm
Working type up shaft is initiative, down shaft is passive
Machine roll forming speed 3m/min
Roll former has leveling bolts in the base for adjust the leveling
Machine base frame adopt H beam welding steel
Transmission by chain, 1.0inch double line
Color of machine Blue and yellow, or as per required



Professional Metal Roof Ridge Cap Roll Forming Machine Made In China parameters



Manual Un-coiler
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted
Main Forming System
◊ Width & Height & Thickness of sheet: According to Drawings
◊ Material: GI sheet coil or Colored sheet coil
◊ Motor Power: 5.5 kw forming system
◊ Roller material:Cr12.
◊ Surface of Roller: Heat treatment HRC58-60.
◊ Diameter of main shaft: 60mm #45 steel, heat treat modulation
◊ Forming station: 12 stations.
◊ Transmission: by chain and gear
◊ Measuring accuracy: +/- 0.5 mm/M.
◊ Safety Hood: Cage
◊ Arch middle plate: 30mm thickness.
◊ Output: 8-10 Tons per shift (8 hrs.).
◊ The machine base is assembled and welded by high quality steel.
Hydraulic Cutting Device
◊ Cutting way: Tracking (Flying)..
◊ Oil pump station: 1set
◊ Motor power of Oil pump station: 7.5kw with cooling system.
◊ Forced air cooling device available.
◊ Cutting mould: 1 sets.
◊ Material of blade: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

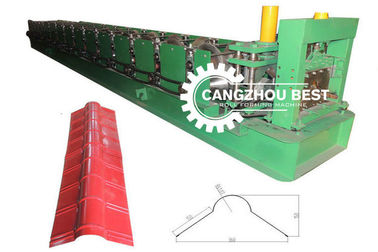

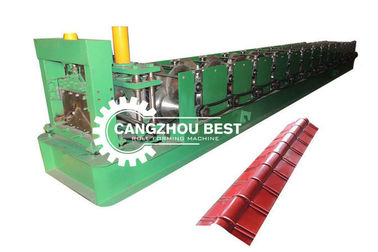

machine picture

Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine 0Color Steel Steel Profile Material Thickness 0.25-0.6mm Steel Roofing Ridge Cap Roll Forming Machine 1
