Widespan House Building 762mm Roofing Sheet Roll Forming Machine

Widespan House Building 762mm Roofing Sheet Roll Forming Machine
Widespan House Building 762mm Roofing Sheet Roll Forming Machine Widespan House Building 762mm Roofing Sheet Roll Forming Machine Widespan House Building 762mm Roofing Sheet Roll Forming Machine Widespan House Building 762mm Roofing Sheet Roll Forming Machine

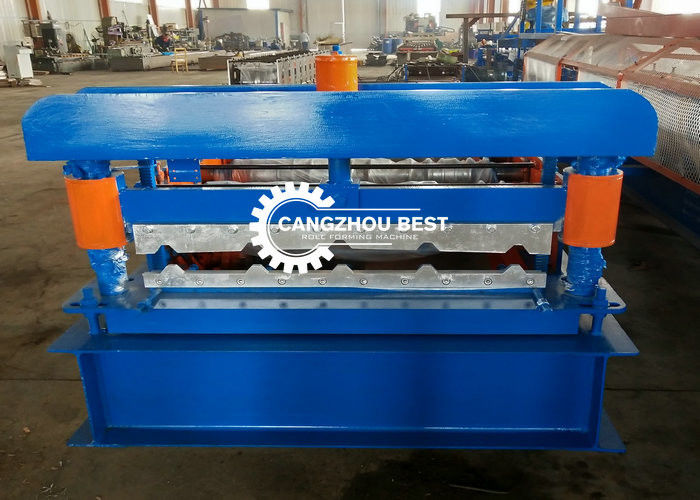

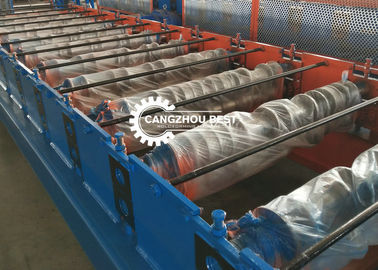

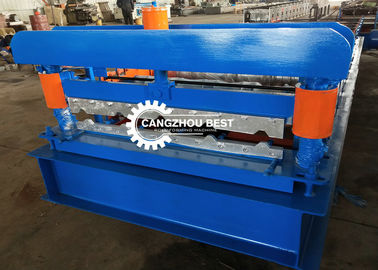

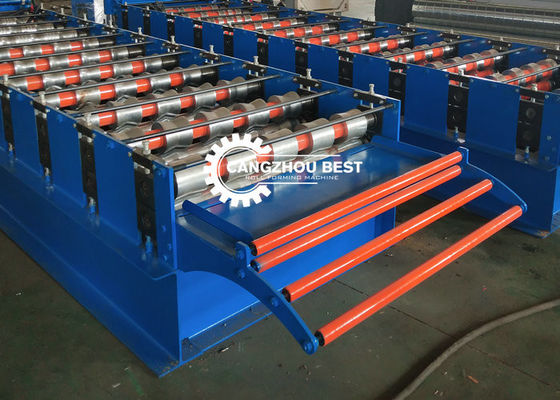

Large Image :  Widespan House Building 762mm Roofing Sheet Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-1041
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Widespan House Building 762mm Roofing Sheet Roll Forming Machine

Description
Name: South Africa 762mm Widespan Roof Sheeting Roll Forming Machine For House Building Shaft Diameter: 70mm
Cutting Blade Material: Cr12 Screen: Color Touch Screen
Bottom Frame: 350H Steel Control System: PLC
Sheet Width: 925mm Speed: 8-12m/min
Side Panel: 20mm Warranty: 18month
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

South Africa 762mm Widespan Roof Sheeting Roll Forming Machine For House Building



1. Usage Of Roof Panel :

The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.



2. Feature Of Our Machines:

1) Our machines can uses galvanized steel sheet, colored armor plate or

aluminum plate as the material plate.

2) Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,

maintenance-free

3) We can make and design will kinds of roll forming machine according to customer's request.



3. Machine details:

DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs



ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 70mm



CUT-OFF DEVICE

(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC58 – 62°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw



PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

(5) Language: English and Chinese

(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand



PRODUCTION SUPPORT TABLE

(1) No power type
(2) Length: 2m





4. Parameters

Technical parameters:
2 Main motor power 5.5kw or as your request
3 Hydraulic motor power 3kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 350 H beam
8 Backboard Thickness 20mm
9 Chain Size 1 inch
10 Feeding Material color steel coils
11 Feeding Thickness 0.25-0.8mm or as your request
12 Feeding Width 1000/1200mm,depend on different design
13 Effective width 686/762mm,or according to your design
14 Productivity 8-12m/min
15 Roll Station 16/18 roll steps(according to different design)
16 Roller Diameter 70mm(depend on different design)
17 Roller material 45# steel
18 Cutter material Cr12 , quenched
19 Cr-Plating Size 0.05mm
20 Overall Size 7500×750×1500mm
21 Total Weight 4.0T
22 Workflow Manual decoiling----feeding and guiding----roll forming----cut to length----run out table



5. Loading:

Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.
Delivery Detail: 45 days after receipt of buyer's deposit





We can produce according to your requirements.
