Product Details:
|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Control System: | PLC(imported Brand) |
| Warranty: | 1 Year | Raw Material: | Color Steel Sheet |
| Manual Un coiler | 1 unit |
| Control panel | 1 unit |
| Roll forming main machine | 1 unit |
| Cutting Device | 1 unit |
| Manual out table | 2 unit |
Equipment List :
De-Coiler :
Electrical Control System :
Terms & Condition :
| No. | Item | Description |
| 1. | Coil width | Depend on your profiles |
| 2. | Working speed | 12-15m/min |
| 3. | Roll station | about 16 - 24 stations |
| 4. | Material of roller | Grade 45 steel, polished and coated with chrome |
| 5. | Material of main shaft | 45﹟ steel |
| 6 | Diameter roller | 70mm |
| 7. | Main power | 7.5KW |
| 8. | Forming thickness | 1.0mm zinc and color steel, 250Mpa-G550MPA |
| 9. | Transmission | by single Chains 1.5inch |
| 10. | Feeding and guide | Surface polished and coated with chrome |
| 11. | Machine drive parts | Adopt protect cover |
| 12. | Machine station | Adopt new station with chrome |
| 13. | Size of main machine | 7500x1500x1300(mm) L x W x H need 1x40GP container |
| 14. | Weight | about 8000Kgs |
| 15. | Color of machine | Blue ( or depend on customer's request) |
| 16. | Machine legs | Four legs (made from metal) in 350mm |
| Machine Specs | |
| Suitable for rolling | pre-painted galvanized steel 0.3~0.8mm thick |
| Cycle Time | 15m/min |
| Cut-off System | 4kW Hydraulic Cutting |
| Power | 19.5kW |
| Dimensions | |
| Machine Size | 11 000 x 1 900 x 1 600mm |
| Forming Stations | 22 stations |

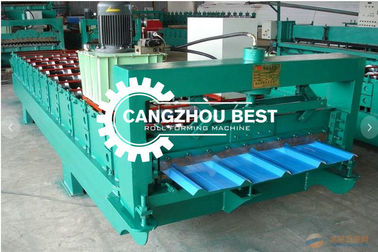

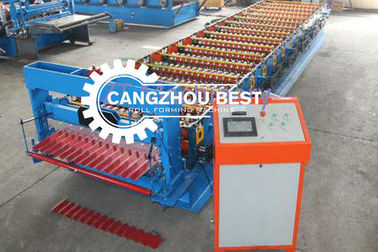

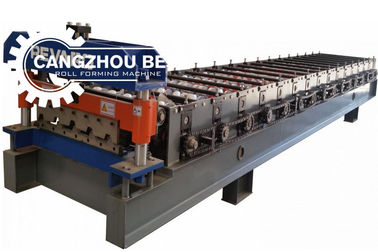

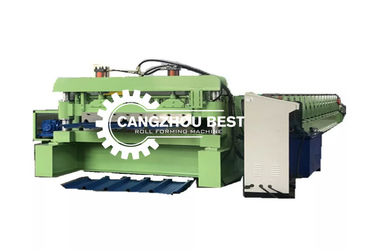

machine picture
