Product Details:
|
| Product Name: | 2/3 Waves Beam 5mm C Post Road Highway Guardrail Crash Barrier Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Coil Diamter: | 450-550 | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| High Light: | guardrail roll forming machine,5mm Highway Guardrail Roll Forming Machine |
||

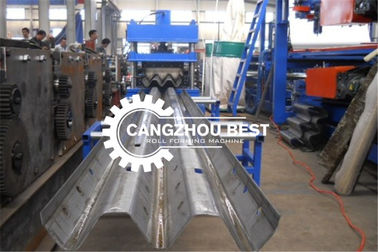

2/3 Waves Beam 5mm C Post Road Highway Guardrail Crash Barrier Roll Forming Machine
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 se |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 600mm | 800mm |
| Capacity | 5000kgs | 5000kgs-15000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |

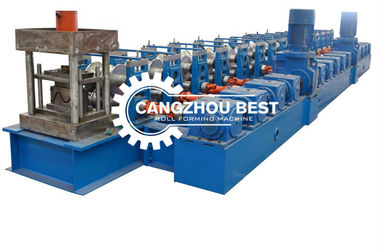

roll forming machine
| Item | Parameter detail | ||||||
| Processing Material | GI and Black Coils | ||||||
| Material thickness | 3-4mm(standard), 3-5mm(customized) | ||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||
| Machine siding panel |
| ||||||
| Forming stations | 14-18 stations (according to the material thickness) | ||||||
| Machine rollers | high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm | ||||||
| Machine Shaft | φ90-100mm high garde No.45 steel after treatment, | ||||||
| Machine spacers | CNC lathing in high-precision and wire-electrode cutting | ||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||
| Driving system | 2 inch chain or gear box(option) | ||||||
| Machine power | 30kw-15kw(according to the size and thickness) | ||||||
| Machine working speed | without punching:8-12m/min or 10-30m/min(option) | ||||||
| Machine testing method | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |

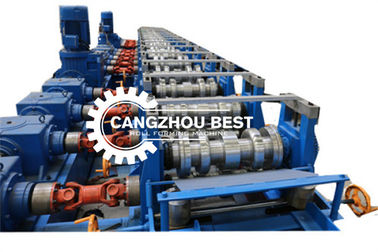

Forming section
main motor power: 30kw
Decelerating motor: BWD14-43-37kw, made in Shanghai or Changzhou
drive: gearbox driving with shafts
The thickness of the sheet: 2-3 mm
main shaft dia: DIA 100mm material: number 45 forge steel
roller material: GCR15 quenched 58°-62°,chromed
roll station:13 stations, guide pillar type.
Timing by transducer:5m--20m/min(not including punching)
Transducer: Yaskawa made in Japan. 380V 50HZ

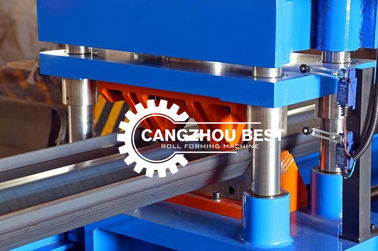

Punching device
| Item | Parameter detail |
| Photo | |
| Frame processing | the whole levelling surface is made by drilling machine |
| Mould material | Cr12mov |
| Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
| Hole size | According to your request |
| Hole number | According to your request |
| Pressure | 20Mpa |
Stacker
| Type | Manual | Auto(option) |
| Length | 2pieces, length is adjustable | according to your requirement |
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system | Cooling fan |
Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
