Product Details:
|
| Name: | 20m/min High Speed Glazed Roofing Sheet Corrugated Roll Forming Machine 1200mm Feeding Width | Color: | As Yourrequire |
|---|---|---|---|
| Speed: | 20m/min | Control System: | PLC |
| Shaft Material: | 45# Steel | Warranty: | 2 Year |
| High Light: | 1200mm Roofing Sheet Roll Forming Machine,PLC corrugated rolling machine |
||

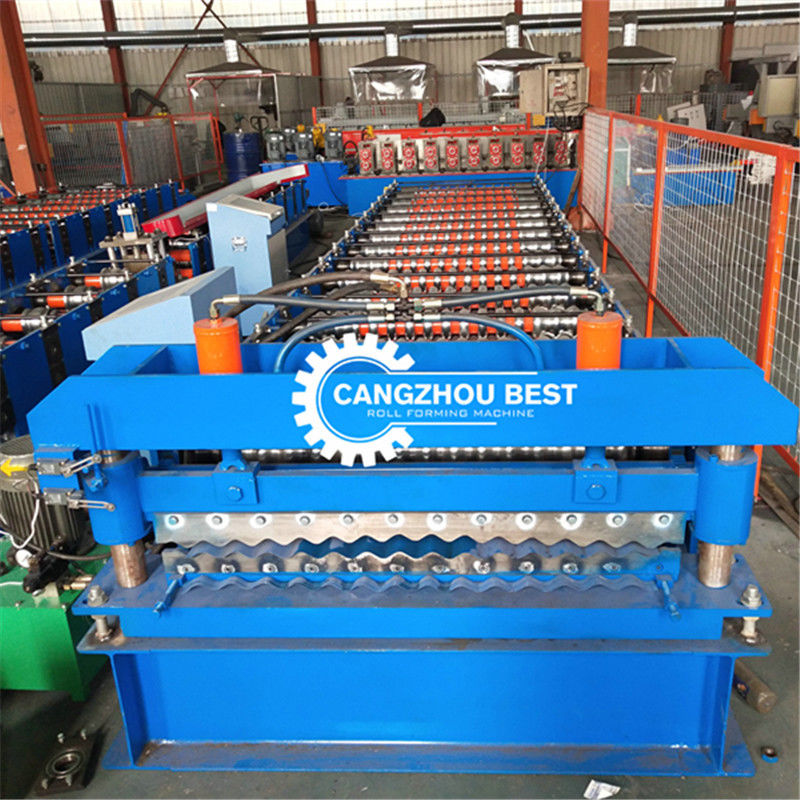

20m/min High Speed Glazed Roofing Sheet Corrugated Roll Forming Machine 1200mm Feeding Width
| Model number | YX-988 corrugated roofing sheet making machine |
| Rolled material | 0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates |
| Effective width | 988mm |
| Feeding width | 1200mm |
| Forming steps | 18 stations |
| Roller | 45# forged steel, hard chrome plating within 0.05mm |
| Diameter of shaft | 70mm |
| Main motor power | 4 kw |
| Pump power | 3 kw |
| Sprocket chain | 1 inch |
| Drive type | by chain |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
| Payment terms | cash,T/T,L/C. |
| Delivery time | 30 working days |
Decoiler
Max. Width: 1250 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs
Type: Manual Or Hydraulic (Optional)
Roll Forming Machine
Roll forming machine

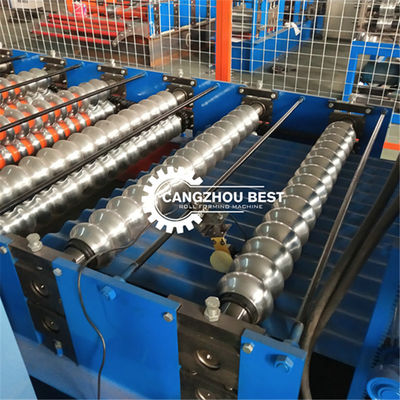

Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;
Shaft: manufactured with 45# high grade steel by CNC machine tools;
Supporting frame: steel wallboard to guide the forming station bearing basement;
NO. of roller Stations:up 18groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 70mm
Frame panel thickness:14mm
Bottom frame: 36# H-section steel
Cutter device
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Power supply: hydraulic station;
Frame: welding steel frame;
Stroke switch: non-contact photoelectric switch;
Cutting after forming: cut the sheet after roll forming to required length;
Length measuring: automatic length measuring.
Packing Detall
| (1) |
40 GP container ; main machine naked and fastened with iron wire in the container. |
| (2) |
All Components Fixed by steel wire with Container. |
| (3) |
electrics devices be packed with wooden box.for Standard export packing |
| (4) |
rollers were painted with oil and packed with plastic film. |
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer, has a professional engineer for technical guidance. Engineers engaged in cold bending mechanical equipment design for more than 20years, has a wealth of design concept. Can provide users with a special type of design and manufacture. At the same time to sell equipment for installation, guidance, production, commissioning one-stop service.
After-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
