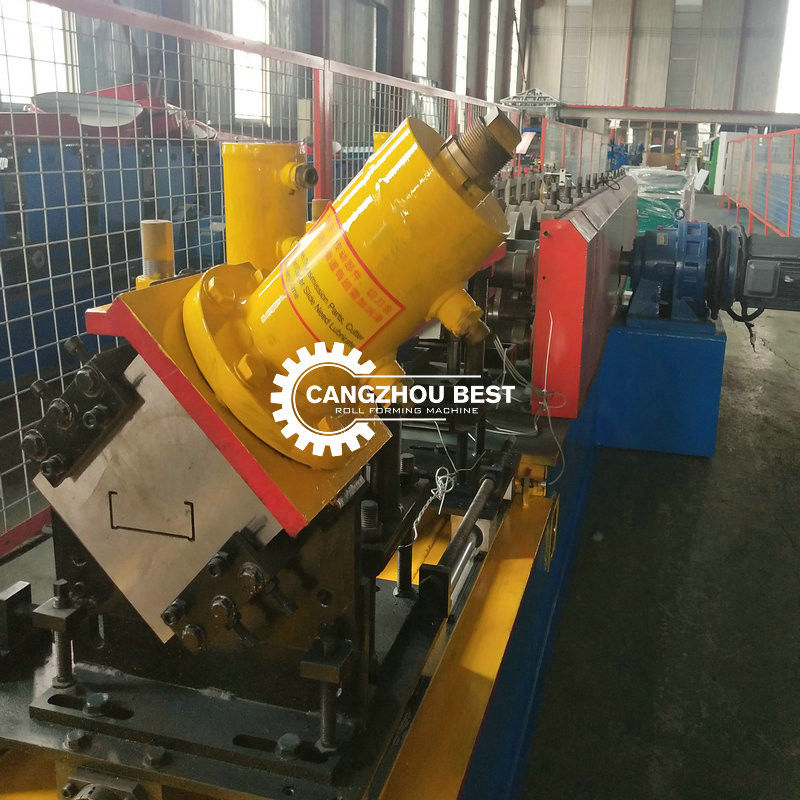

Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine

Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine
Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine

Large Image :  Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY38x12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine

Description
Product Name: Double Line Stud&Track Profile Light Steel Keel UD50 CD52 Roll Forming Machine Color: Blue Or According To Your Requirement
Control System: PLC Cutting Type: Non-stop Cutting
Warranty: 2 Years Lifetime: 10years
High Light:

light steel keel roll forming machine

,

PLC keel roll forming machine

Double Line Stud&Track Profile Light Steel Keel UD50 CD52 Roll Forming Machine

Technical Detail

A Sheet Specifications

1
Coil Type
PPGI GI
2
Width
500mm
3
Thickness
0.3-0.8mm
4
Yield stress
Q235
5
Effective
235MM

B Components Details

Roller Material
High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame
350#steel.More stable and no shaking
Middle Plate
16mm. We use thicker plates to ensure stability of our products.
Forming Steps
15, according to the drawing.

Shaft Material
Φ70 mm, high grade 45# steel.
Treating process: tempering- finish turning,
high rigidity, hard to deform.

Cutting Blade Material
Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power
380V, 50 Hz, 3 phase or according to your need.
Screen
7 inch touch screen, easy to operate.

PLC
Delta DVP 14ES
well-adapted to various conditions, such as moisture,
electromagnetic disturbance.

Frequency Converter
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
Length
Measurement Device
Omron, made in Japan.
It features with high accuracy and stability.

Main Features.

1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.


RFQ

Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.



Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine 0



Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine 1

Double Line Profile Light Steel Keel UD50 CD52 Roll Forming Machine 2
