Cold Formed Steel High Speed 20-25m/min C Stud Cold Roll Forming Machine

Large Image : Cold Formed Steel High Speed 20-25m/min C Stud Cold Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE
Model Number:	YX60

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000---15000
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Cold Formed Steel High Speed 20-25m/min C Stud Cold Roll Forming Machine

Description

Product Name:	Cold-Formed Steel C-Studs Cold Roll Forming Machine For Roof & Wall Framing System	Color:	Customized
Weight:	Around 5 Tons	Working Type:	Automatic
Feature:	Strong Structure	For:	Roof & Wall Framing System
Highlight:	steel stud roll forming machine , stud roll forming machine

Cold-Formed Steel C-Studs Cold Roll Forming Machine for Roof & Wall Framing System

Technical Specifications of C Profiled Stud Rollforming Line

Raw Mateial Thickness: galvanised steel coils, zinc coated steel coils, aluzinc steel coils
Raw Material Thickness: 0.6-0.8mm
Machine Frame: high grade steel welded and tempering treatment
Forming Structure: Welded wall plte structure
Forming Motor: 5.5KW
Roller Material: No.45 steel coated with hard chrome ≥ 0.05mm
Shaft Material: No. 45 steel of high quality
Shaft Diameter: 72mm
Bearing: HRB bearing (Top Chinese brand)
Roll Forming Speed: About15m/min( not include cutting time )

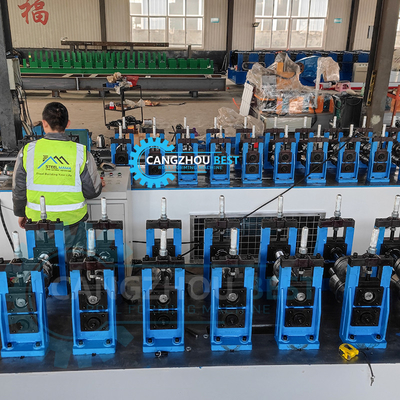

Rollformer Stations: About 13 groups

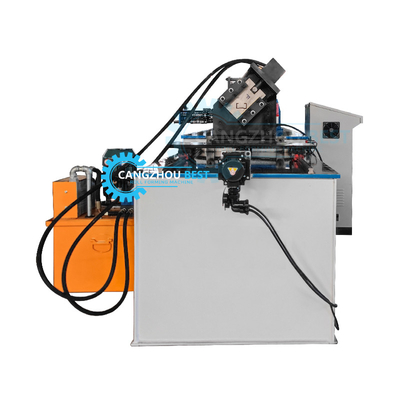

Cutting Type: Hydraulic cutting after roll forming
Cutting blade material: Cr12 mould steel with quenching treatment, HRC58-62
Hydraulic Station Power: 2.2KW
Electric Controller: Mitsubishi PLC, inverter and touching screen
Votage: 380V or customzied according to customers' requirement
Components List of Steel C Profile Stud Making Production Line

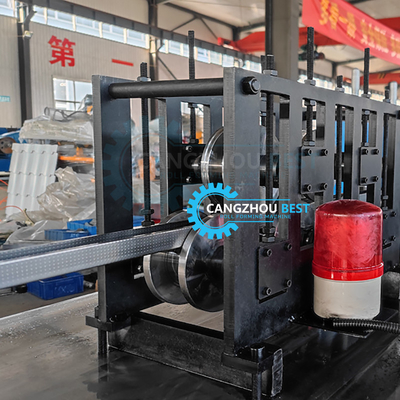

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

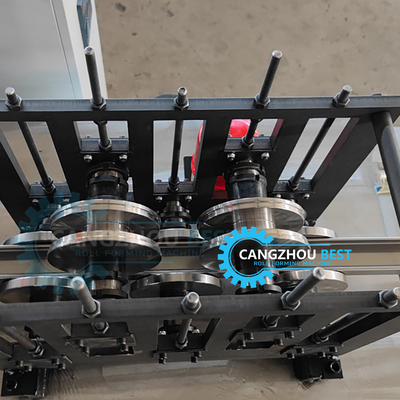

(2) NO. of roller Stations: 12groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 14mm

(7) Bottom frame: 35# H-section steel
(8) Motor Power: 3kw

(9)Driven type: 1.0＂Chain
(10)Speed:15m/min

(11)Pre slide cutter

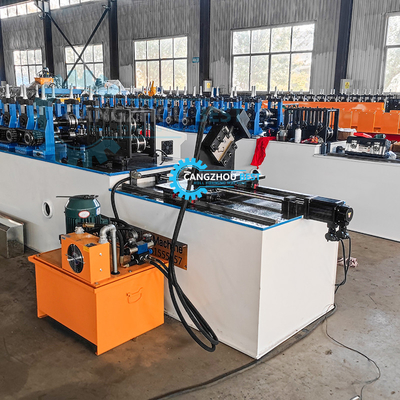

No.	Items		Quantity
1	Coil Uncoiler (automatic or manual)		1 set
2	Roll Former	Direction Guilder	1 set
		Rolling System	1 set
		Post-cutting Device	1 set

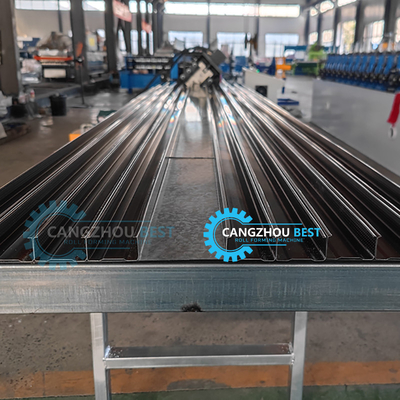

3	Supporting Tables for Finished Studs Sheets		2 sets
4	Hydraulic Station for Cutting Device		1 set
5	Electrical PLC Control Box		1 set
6	Tools Box with Spare Parts		1 set

Working conditions
1.working size	20m x 2m x 4m
2.Power supply	6kw
3.Frequency	50-60HZ
4.Wires/cables	4-6mm²(length according to workshop)
5. Labor cost	2 workers
6. Tools	Spanners and screwdriver
7.Lift device	3-5t forklift or crane

Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD200, visa cost and necessary things.

C Shape Stud and U ShapeTrack Profile Drawing for Reference

Cold Formed Steel High Speed 20-25m/min C Stud Cold Roll Forming Machine 0
