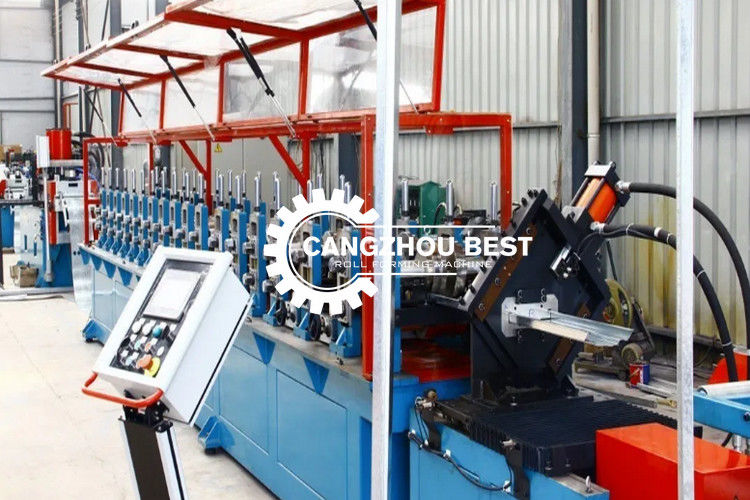

15 M / Min Drywall Furring Channel Roll Forming Machine

15 m/min Non Stop Cutting Drywall Furring Channel Roll Forming Machine

Brief Introduction Of Drywall Furring Channel Roll Forming Machine

This machine is used to produce furring channels, a hat-shaped corrosion-resistant framing component used to furr out masonry walls and ceiling assemblies. Main process of this machine is decoiling, leveling, punching, guiding, roll forming, cutting.

Main Components Of Furring Channel Machine

1. 3Ton single arm decoiler..............................................................................1 unit

2. 7-roller leveling device.................................................................................1 unit

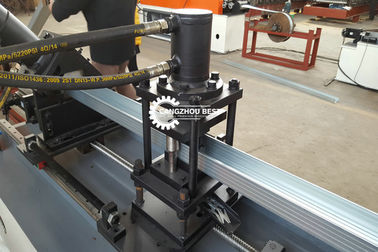

3. Punching device with servo feeding device..................................................1 unit

4. Guiding device.............................................................................................1 unit

5. Roll forming part...........................................................................................1 unit

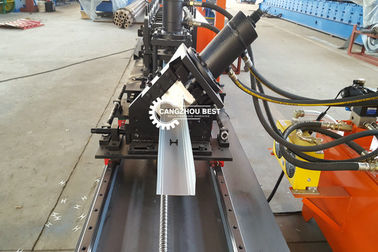

6. Fly cutting device..........................................................................................1 unit

7. Product support table...................................................................................2 units

8. Control cabinet.............................................................................................1 unit

9. Hydraulic stations..........................................................................................2 units

Machine Features

1. This furring channel machine employs individual leveling device and punching device, ensures the machine speed of 15m/min.

2. This machine employs non stop fly cutting device, ensures the speed of whole machine.

Main Technical Parameters

1. Applicable materials: galvanized coils

2. Material thickness: 0.4-1.0mm

3. Roll forming stations: 18 stations

4. Roll forming speed: 15m/min whole line speed including punching and cutting

6. Diameter of shafts: 70mm

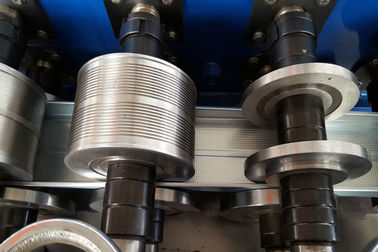

7. Material of rollers: high grade 45# steel with heat treatment and chrome plated

8. Punching power: 22kw

9. Cutting power: 4kw

10. Material of cutting blade: Cr12 mold steel
